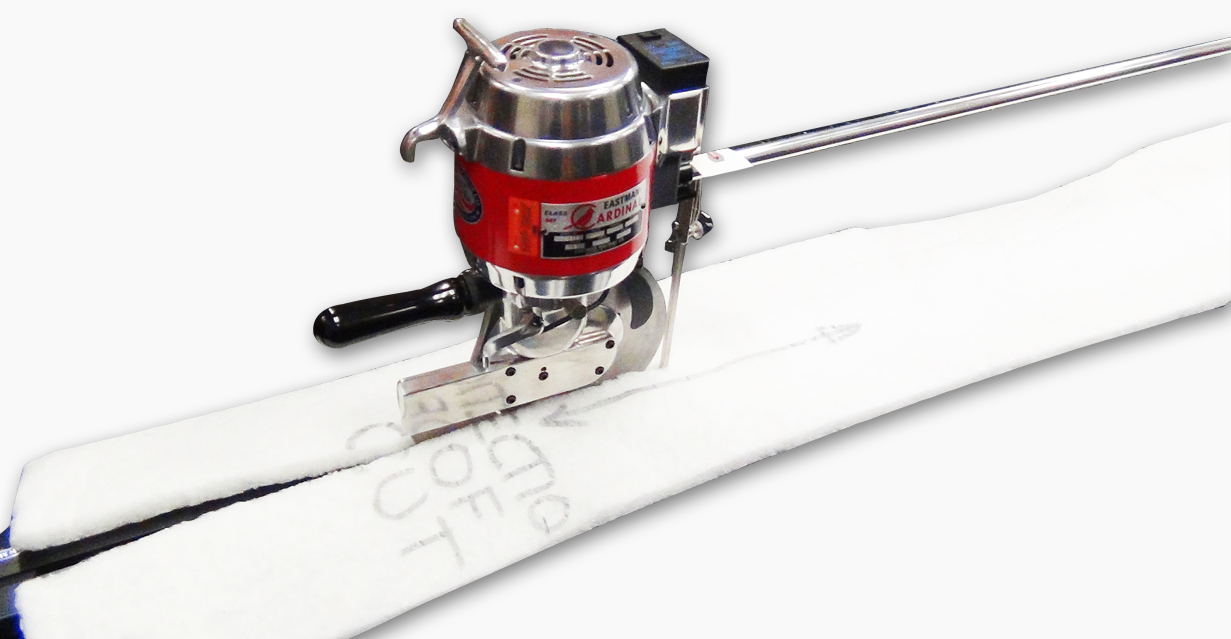

Heavy Duty Falcon® 562

MODEL 562FALHD75X – Featuring Eastman’s Heavy-Duty 562 Cardinal Round Knife, mounted on a skate and bearing system and inside a track, has a cutting capacity of 2 inches (5.08cm); making it the industry’s most powerful and versatile cut-off machine.

Product Summary

End Cutters

Featuring Eastman’s Heavy-Duty 562 Cardinal Round Knife, mounted on a skate and bearing system and inside a track, it is the ideal solution for difficult to cut materials, or materials that generate debris when being processed. A fantastic solution for straight cuts of insulation!

It can be attached to any type of cutting table with an easy-to-use clamping bracket.

The Heavy Duty Falcon has a “Quick-lift” lifting device allowing for manual spreading and cutting of goods such as heavy woolens, canvas and most industrial fabrics.

The 562 Falcon has a cutting capacity of 2 inches (5.08cm).

Cutting of wide material with wide table options (up to 144in. wide / 3.66m wide), with a long handle option or a push/pull handle option for extremely wide cuts needing more than one operator

Manual Cutting > End Cutters

Features

  • Combination of torque and blade speed enables more cutting power for thicker or dense materials
  • Large skate with spring loaded bearings to prevent any sway in the cutter during operation

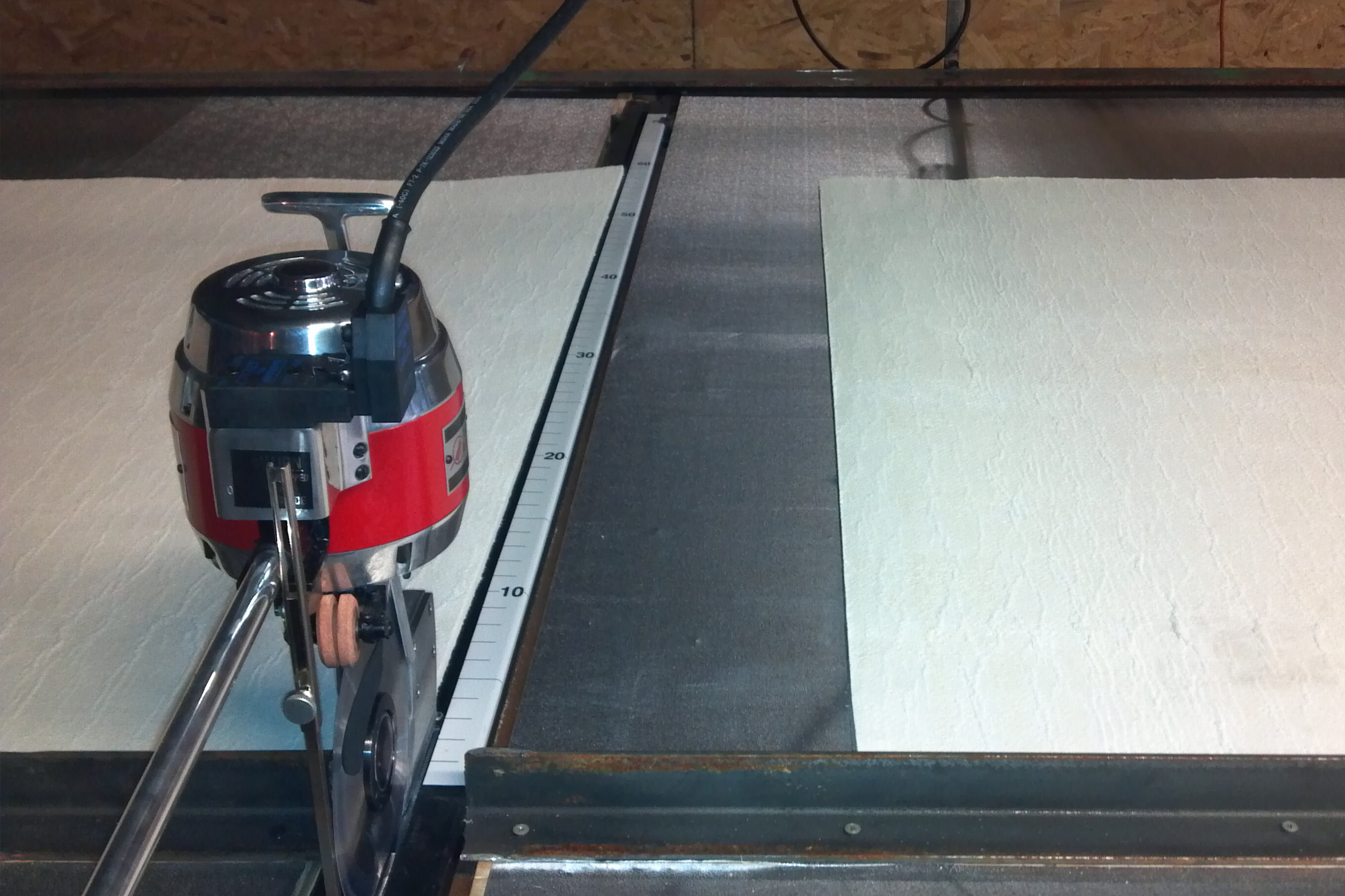

Heavy Duty Falcon 562 on cutting table

Download Product PDF

  • Hidden
  • Hidden
  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Table Widths Available

48 – 144 in. (1.22m – 3.66m)

Motors

110v, 1ph, 50/60Hz 220v, 1ph or 3ph, 50/60Hz

Horsepower

0.65hp, 1ph 0.93hp, 3ph

Weight with Track & Lifters

85 lbs. (38.56kg)

Standard Features

Heavy-duty steel track and skate system

Options

Manual lifter, Bias Lifter, Air Lifters, Material Alignment, Push Handle, Swivel Handle

Blade Size

7.5 in. (19.1cm)

Cutting Capacity

2 in. (5.10 cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
