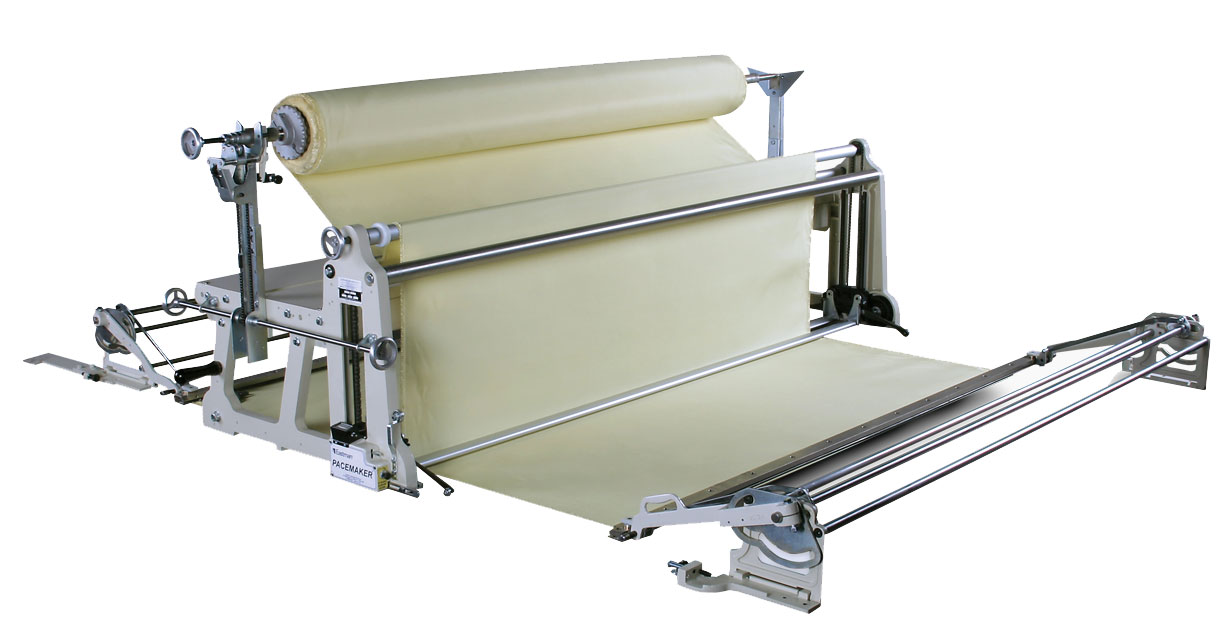

Pacemaker

Eastman's top-of-the-line manual spreader, the Pacemaker, can be utilized efficiently and with ease for face-up and face-to-face spreading. This lightweight, economical machine combines strength and reliability to increase the productivity of your spreading operations. The Pacemaker is equipped with end catchers, which automatically fold and clamp the fabric at each end of the spread.

Eastman’s top-of-the-line manual spreader, the Pacemaker, can be utilized efficiently and with ease for face-up and face-to-face spreading.

This lightweight, economical machine combines strength and reliability to increase the productivity of your spreading operations.

The Pacemaker is equipped with end catchers, which automatically fold and clamp the fabric at each end of the spread.

Description

Manual Edge Control
Ply Counter
Expandabar

Optional Features

Automatic Infra-Red Edge Control
End Catchers
Quick-Cut Attachment for face-up spreading
Front or Double Uprights

Piece Goods Bar

Frozen Bar Assembly (250 lb. max.)
Standard Expandabar (125 lb. max.)
Heavy Duty Expandabar (300 lb. max)

Additional information

Roll Weight - Maximum	125 lbs. (57kg)
Roll Diameter - Maximum	24 in. (61cm)
Maximum Spread Height	8.5 in. (22 cm)
Electric Power Requirements	110V at 7 amps 220V at 4 amps
Machine Weight	250 lbs. (113.4kg)
