A-Frame

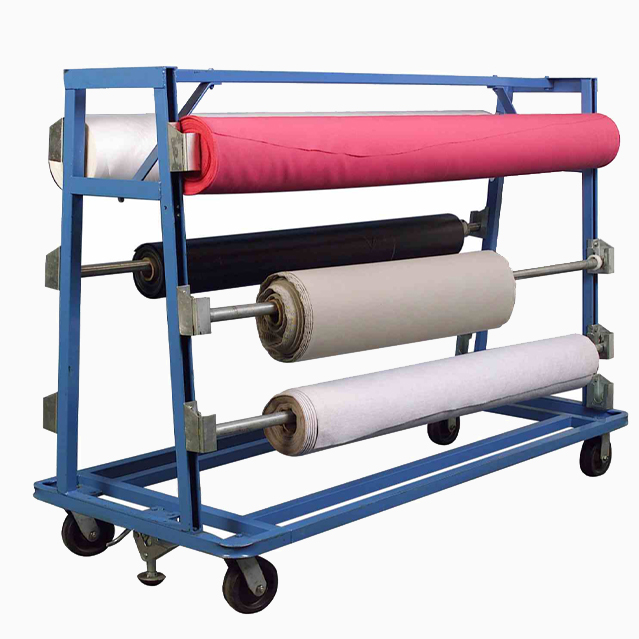

The A-Frame manual feeder is an economical solution for trouble-free spreading of different fabrics. The standard 78 inch wide model is fully portable with a total weight capacity of 2,000 lb (1000 lb/453.6kg per side).

Product Summary

The A-Frame manual feeder is an economical solution for trouble-free spreading of different fabrics. The standard 78 inch wide model is fully portable with a total weight capacity of 2,000 lbs. (1000 lbs/453.6kg per side).

Material Handling > Carousel & Roll Racks

Features

  • Fully portable, allowing goods to be unrolled directly from the A-Frame to the cutting table
  • Maneuverable narrow design with 6 inch (15.2cm) rubber caster wheels
  • 1-5/16” rotating roll bars equipped with ball bearing brackets
  • Optional cones available
  • Optional core reducers available
  • Optional heavy-duty 6 roll model available
  • Optional heavy-duty 8 roll model available

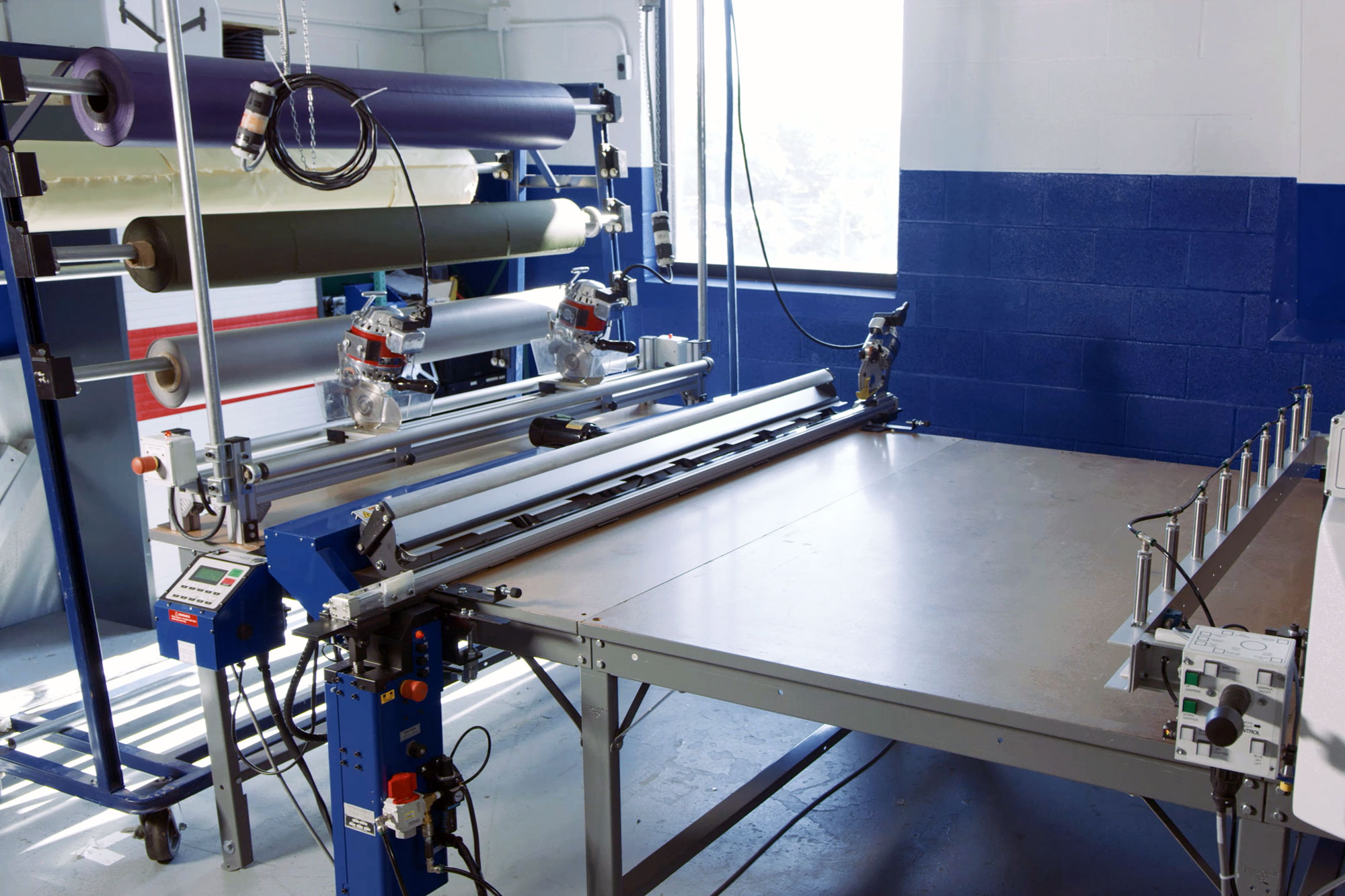

A-Frame manual feeder in use

Download Product PDF

  • Hidden
  • Hidden
  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Width

60 in. (1.52 m) 72 in. (1.83 m) 78 in. (1.98 m) – Standard stock model 84 in. (2.13 m) 96 in. (2.44 m) 102 in. (2.59 m) 108 in. (2.74 m) 126 in. (3.20 m) 132 in. (3.35 m) Contact factory for wider sizes available

Maximum Rolls

8 rolls (four on each side)

Maximum Weight Per Bar

250 lbs. (113 kg) Opt. Heavy-Duty 6 Roll: 330 lbs. (150 kg) Opt. Heavy-Duty 8 Roll: 375 lbs. (170 kg)

Max. Outer Roll Diameter

16 in. (40.6cm)

Unit Height

75.5 in. (192 cm)

Unit Depth

33 in. (84 cm)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
