ES-1800

The Eastman ES-1800 Series Spreading System is suitable for all types of fabrics and offers multiple functions for fast and easy spreading heights up to 7.9” (20cm).

Product Summary

The Eastman ES-1800 Series Spreading System is suitable for all types of fabrics and offers multiple functions for fast and easy spreading heights up to 7.9” (20cm). Available in several sizes, the ES-1800 is the perfect solution for accurate spreads.

Material Handling > Spreading Systems

Features

  • Spread one-way (face-up) or zig zag (face-to-face)
  • LCD touch screen control panel with multiple languages
  • Ergonomic material loading position
  • Dual extension system for maximum tension control
  • Emergency stop control
  • Safety zone indicated with highlighted bar
  • Advanced end cutter design ensures end cutting quality
  • Timing belt and encoder system makes more accurate spread lengths

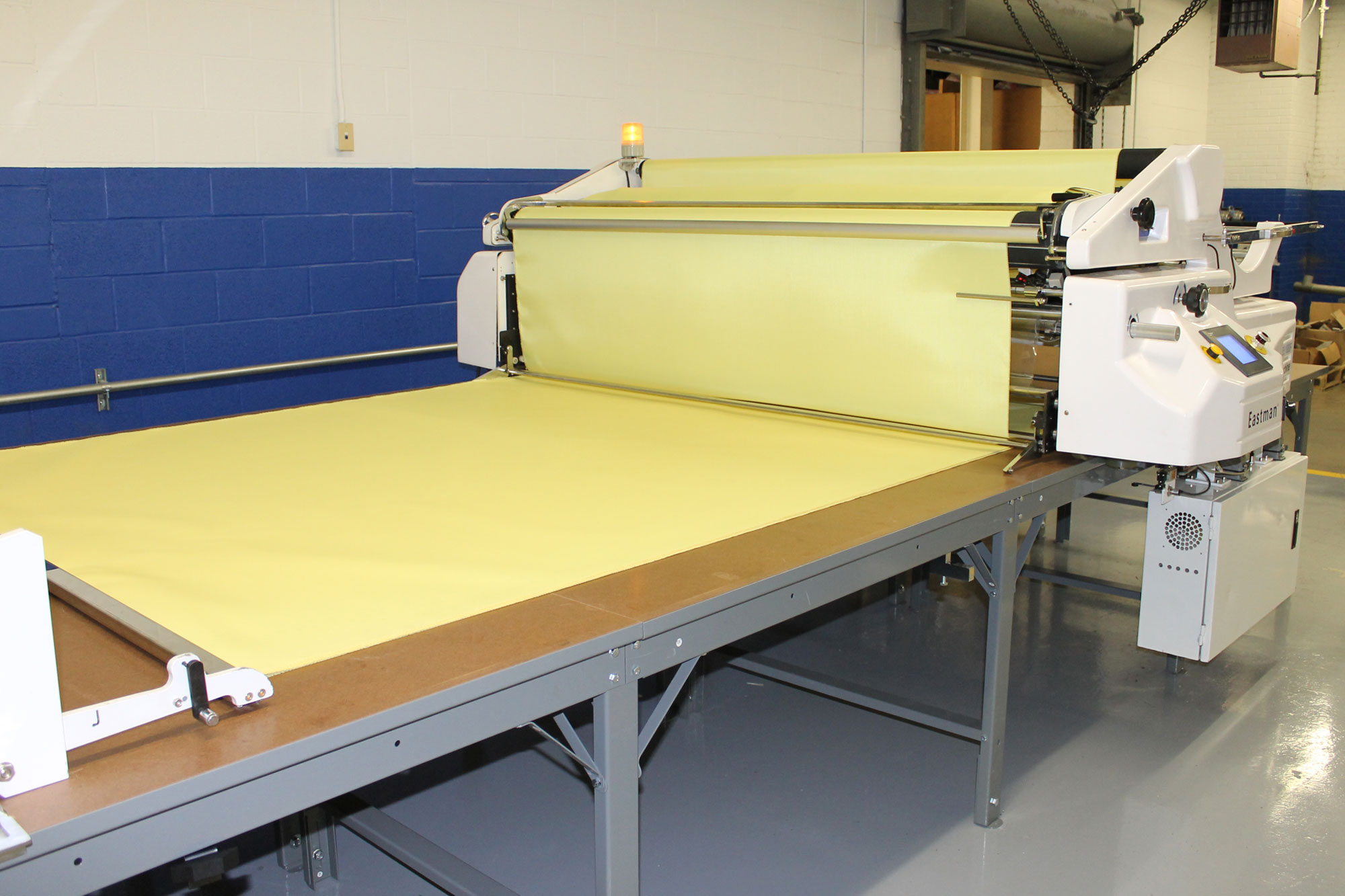

ES 1800 spreading yellow material

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Spreading Width - Max

ES-1800/6 ft. – 64 in. (1655mm) ES-1800/7 ft. – 76 in. (1955mm) ES-1800/8 ft. – 88 in. (2255mm)

Table Width

ES-1800/6 ft. – 72 in. (1830mm) ES-1800/7 ft. – 84 in. (2130mm) ES-1800/8 ft. – 96 in. (2430mm)

Spreading Speed

106 yard/min. (97m/min)

Maximum Spread Height

7.87 in. (20 cm)

Pass through Height

9.05 in. (23cm)

Spread Length Accuracy

.11 in. (+/- 3mm)

Edge Alignment Accuracy

.07 in. (+/- 2mm)

Roll Diameter - Maximum

28 in. (72 cm)

Roll Weight Capacity

397 lbs. (180 kg)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
