ES-980

The Eastman ES-980 Series Spreading System is a dedicated system for woven fabrics and offers multiple functions for fast and easy spreading heights up to 7.9 in. (20 cm). It comes equipped with a spiral and static roller.

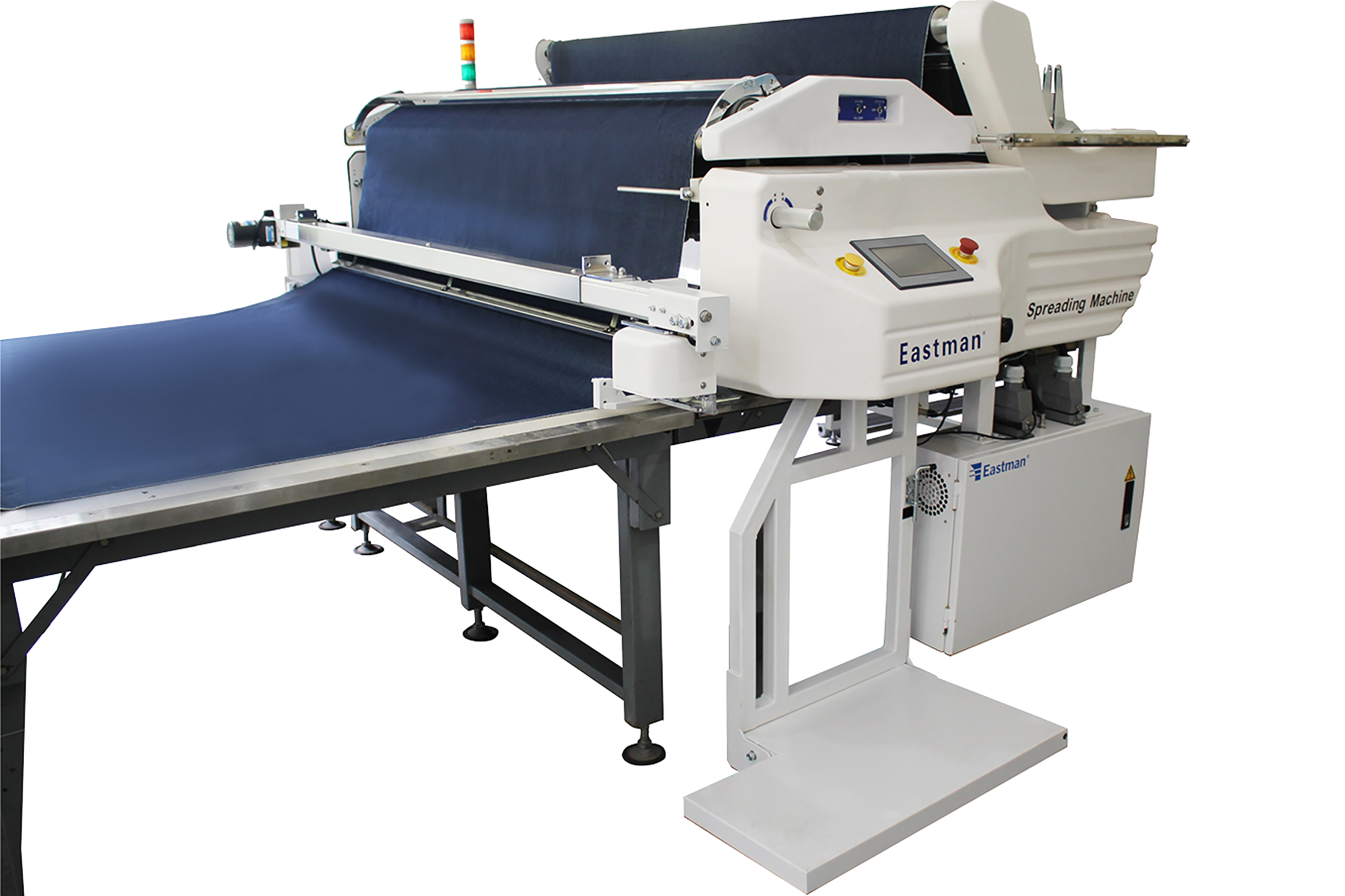

ES 980 product photo

Product Summary

The Eastman ES-980 Series Spreading System is a dedicated system for woven fabrics and offers multiple functions for fast and easy spreading heights up to 7.9 in. (20 cm). It comes equipped with a spiral and static roller. Available in several sizes, the ES-980 is the perfect solution for accurate spreading of any woven material.

Material Handling > Spreading Systems

Features

Standard Features

  • Easy-to-operate LCD touch screen interface
  • Auto edge alignment
  • Auto up & down control
  • Two catcher for dual way spreading
  • Auto cutting control
  • Emergency stop control
  • Auto material feeding
  • Foldable rider platform
  • Material setting memory

New Features

  • New generation Mitsubishi MELSEC iQ-F serial FX5U PLC, enhanced architecture with improved performance
  • Synchronized duo-servo motor control system for machine movement and material feeding enables efficient, stable and accurate spreading

Available Options

  • IoT multi-function intelligent operation screen with remote production reporting (WiFi required)
  • Flatfold attachment: aluminum or wooden
  • Static eliminator
  • Timing belt and encoder gear system
  • Special cloth exhaust bar
  • Auto-tension spreading function
  • Overhead mast

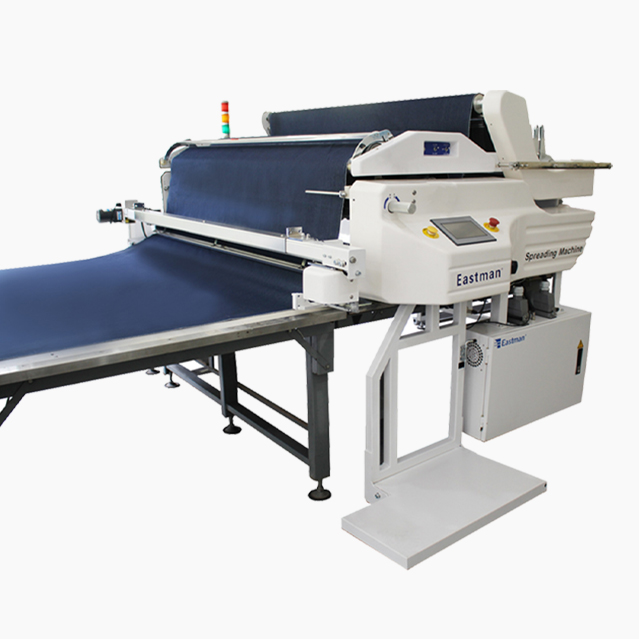

ES-980 product image

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Spreading Width - Max

ES-980/6 ft. – 63 in. (1600 mm), ES-980/7 ft. – 74.8 in. (1900 mm), ES-980/8 ft. – 86.6 in. (2200 mm), ES-980/9 ft. – 98.4 in. (2500 mm), ES-980/10 ft. – 110.2 in. (2800 mm), ES-980/11 ft. – 122.1 in. (3100 mm), ES-980/12 ft. – 133.9 in. (3400 mm)

Table Width

ES-980/6 ft. – 72.4 in. (1838 mm), ES-980/7 ft. – 84.2 in. (2138 mm), ES-980/8 ft. – 96 in. (2438 mm), ES-980/9 ft. – 108.2 in. (2749 mm), ES-980/10 ft. – 120.0 in. (3054 mm), ES-980/11 ft. – 132.2 in. (3359 mm), ES-980/12 ft. – 144.3 in. (3664 mm)

Spreading Speed

318ft./min. (97m/min.)

Maximum Spread Height

7.9 in. (20 cm)

Pass through Height

9 in. (23cm)

Spread Length Accuracy

+/- 0.12 in. (+/- 3mm)

Edge Alignment Accuracy

+/- 0.08 in. (+/- 2mm)

Roll Diameter - Maximum

20 in. (50 cm)

Roll Weight Capacity

265 lbs. (120kg)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
