Expandable Spreader

The Expandable Spreader is conducive to spreading multiple layers of various width materials using one system. The maneuverable spreader adjusts one-way or face-to-face spreading.

AP-142 expandable spreader brighter

Product Summary

Expandable Spreader at Oveja Negra

The Expandable Spreader is conducive to spreading multiple layers of various width materials using one system. The maneuverable spreader adjusts one-way or face-to-face spreading. Ideal for smaller shops with cloth rolls less than 150 lbs (68 kg) or as emergency machine for cutting rooms with motorized spreaders. The manual edge control and lifters guide the material as the operator spreads it along the cutting table.

Material Handling > Spreading Systems

Features

Standard Features

  • Manual Edge Control
  • Roll Bar

Optional Features

  • Double Uprights
  • Cloth Weights – 24 in. (60.96 cm), 36 in. (91.44 cm), 48 in. (121.92 cm) increments
  • Extended Height Capacity – – 2 in. (5.08 cm), 4 in. (10.16 cm), 6 in. (15.24 cm) increments

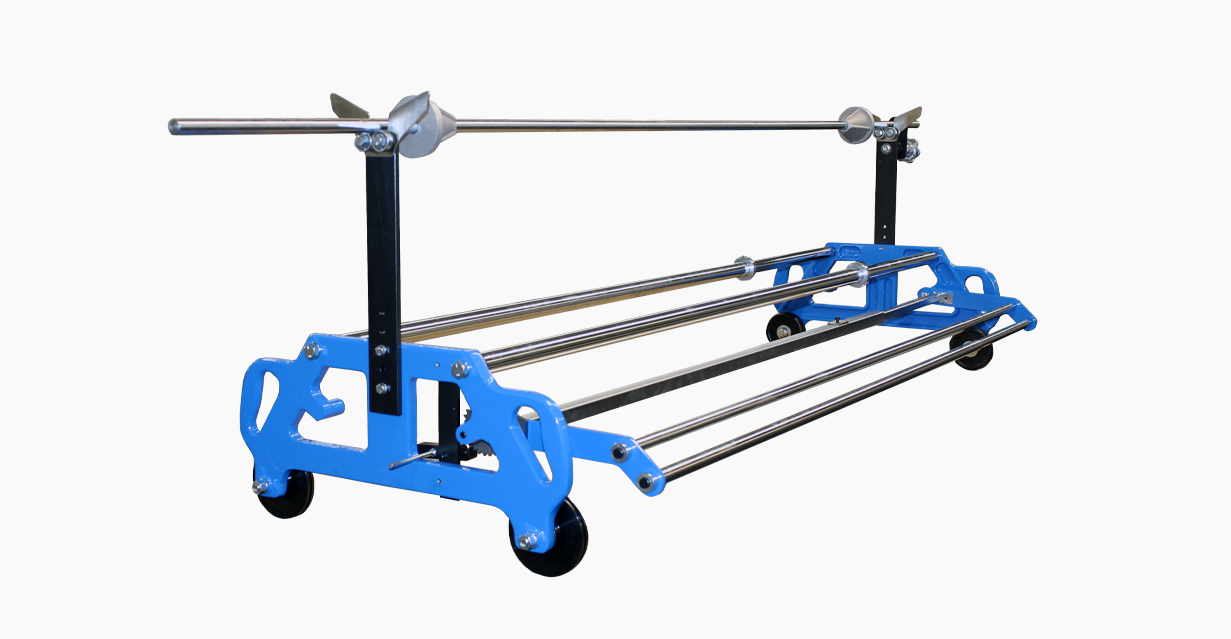

AP-142 expandable spreader no-roll brighter

Download Product PDF

  • Hidden
  • Hidden
  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Spread Height - Maximum

9 in. (22.9 cm) 15 in. (38.1 cm) – optional

Roll Weight - Maximum

150 lbs. (68kg)

Roll Diameter - Maximum

24 in. (60.96 cm)

Roll Width

78in. (1.98 m)

Machine Weight

75 lbs. (34kg)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
