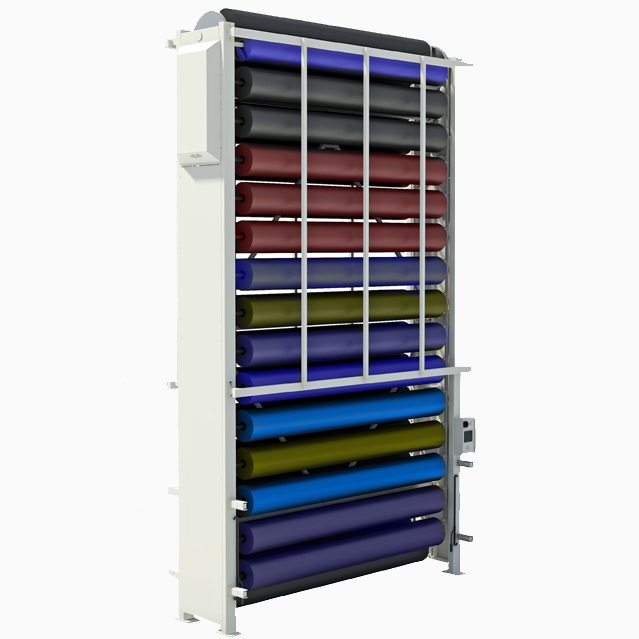

Multi-Roll Carousel

The Multi-Roll Carousel system, available in many sizes and styles, provides tremendously simple access to multiple material rolls for end-of-table spreading, using minimal floor space. With the press of a button, material rolls turn around the carousel, stopping on the desired roll.

Product Summary

The Multi-Roll Carousel system, available in many sizes and styles, provides tremendously simple access to multiple material rolls for end-of-table spreading, using minimal floor space. With the press of a button, material rolls turn around the carousel, stopping on the desired roll.

The motorized textile carousel increases useable storage capacity by applying the product to operator principle in underutilized overhead space.

Mechanical storage eliminates wasteful and potentially harmful steps for stocking and retrieving rolled materials. The Multi-Carousel accomplishes this by automating retrieval and presenting rolls at an ergonomically optimum height which reduces unnecessary bending, walking, lifting, and pushing which will reduce work related injuries.

Material Handling > Carousel & Roll Racks

Features

  • Easy mobility with motorized control
  • Simplified roll loading right off the floor or cart
  • Shielded motors prevent materials from being soiled
  • Dual controls for loading and operating ease
  • Forward/Reverse push buttons with security keypad and e-stop
  • Single tower, multiple tower or overhead configurations available
  • Casters and track configuration
  • Material can feed from either side

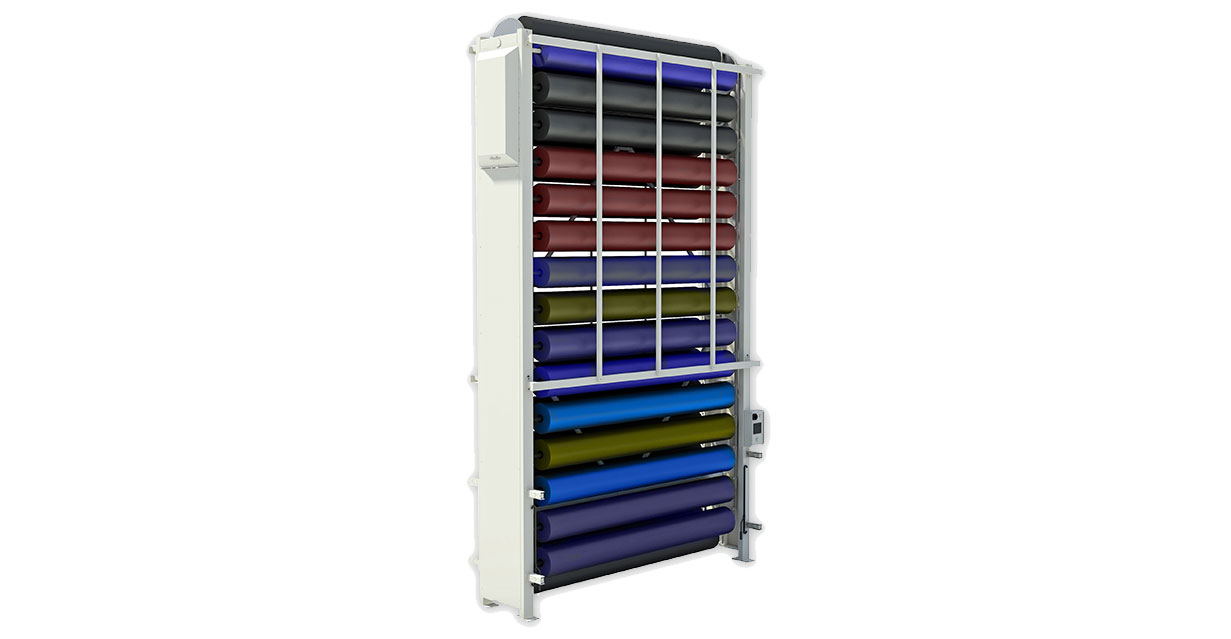

Multi-Roll Carousel product photo

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Standard Height

10-24 ft. (3-7.3m)

Maximum Width

15 ft. (4.5m)

Maximum Outer Roll Diameter

36 in. (91.4 cm)

Total Weight Capacity

12,000 lbs. (5443 kg)

Maximum Weight Per Roll

300 lbs. (136 kg)

Heavy-Duty Option Wt. / Roll

3,000 lbs. (1360 kg)

Power Requirements

208/230V, 15 Amp, 60 Hz, 3 Phase 460/480V, 10 Amp, 60 Hz, 3 Phase (other electrical available upon request)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
