Standard Cardinal®

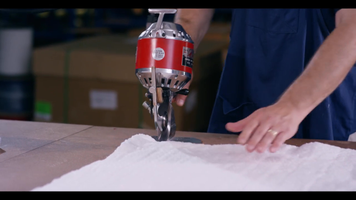

MODEL 548 – The Cardinal model 548 is our most widely used round knife machine. It is available in two different blade sizes and is designed with a lightweight, powerful motor to provide the optimum cutting configuration.

Product Summary

Cardinal Round Knives

The Cardinal® model 548 is Eastman’s most widely-used round knife machine. It is available in two different blade sizes, and it is designed with a lightweight, powerful motor to provide optimum cutting configuration.

Eastman round knife machines are ideally suited for cutting large radius curves, straight lines and are applicable for a wide range of difficult to cut materials.

Manual Cutting > Round Knives

Features

  • Available with two different blade sizes
  • Powerful motor provides versatility for cutting a wide range of materials
  • Blades are available in carbon steel, high speed steel, grooved and PTFE coated

Download Product PDF

  • Hidden
  • Hidden
  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Motors

110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM)

Horsepower

0.34hp, 1ph 0.48hp, 3ph

Weight

21 lbs. (9.52kg)

Blades

Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated

Sharpener Stones

Standard: 120 Heavy Optional: 150 Medium, 220 Fine

Options

Knife lubricator, stationary base plate

Blade Size

5.25 in. (13.3 cm) 6 in. (15.2 cm)

Cutting Capacity

3.125 in. (7.95cm) 3.5 in. (8.89cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
