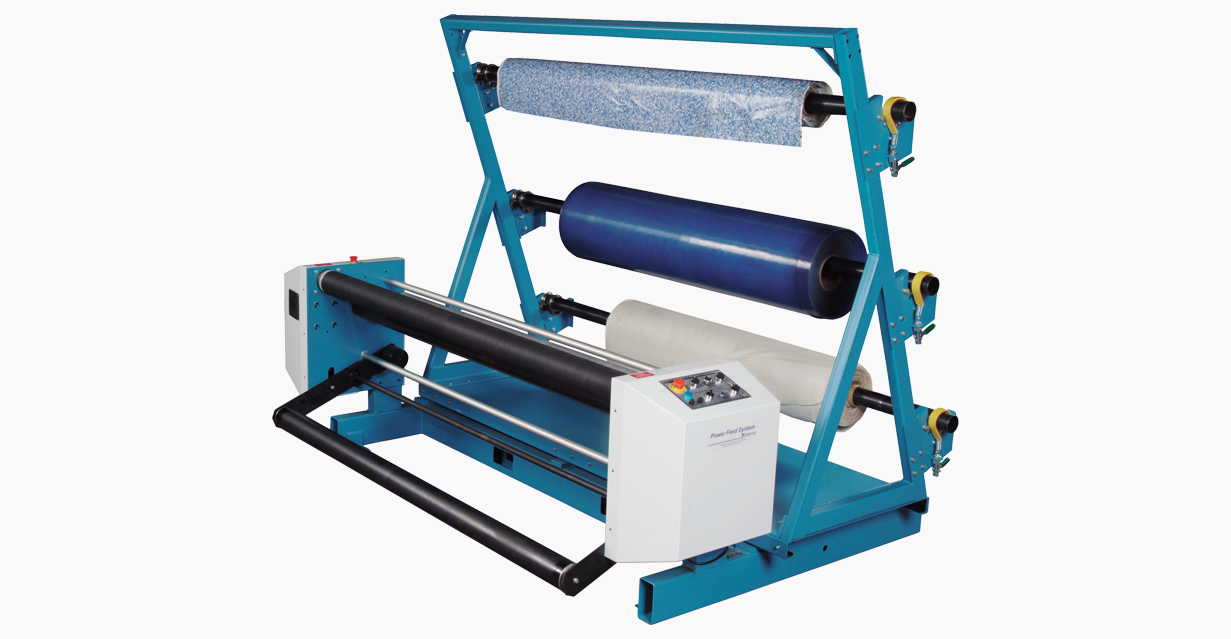

Power Feed, 3-Roll

The Power Feed System continuously supplies material to the cutting table with consistent tension. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed simplifies material feeding.

Product Summary

The Power Feed System simplifies material feeding to the cutting system by automatically adjusting and maintaining consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed continuously supplies material for the length of marker or until the roll is consumed.

Material Handling > Feeding Systems

Features

  • Automatic edge control included
  • Available in mirror image or standard configuration

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Width

78 in. (2.0 m) 84 in. (2.1 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information.

Standard Weight Capacity

2,000 lbs. (907 kg)

Weight Capacity Per Bar

750 lbs. (341 kg)

Maximum Roll Diameter

20 in. (51 cm)

Power Requirements

110V at 15 amps, 1 ph 220V at 8 amps, 1 ph

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
