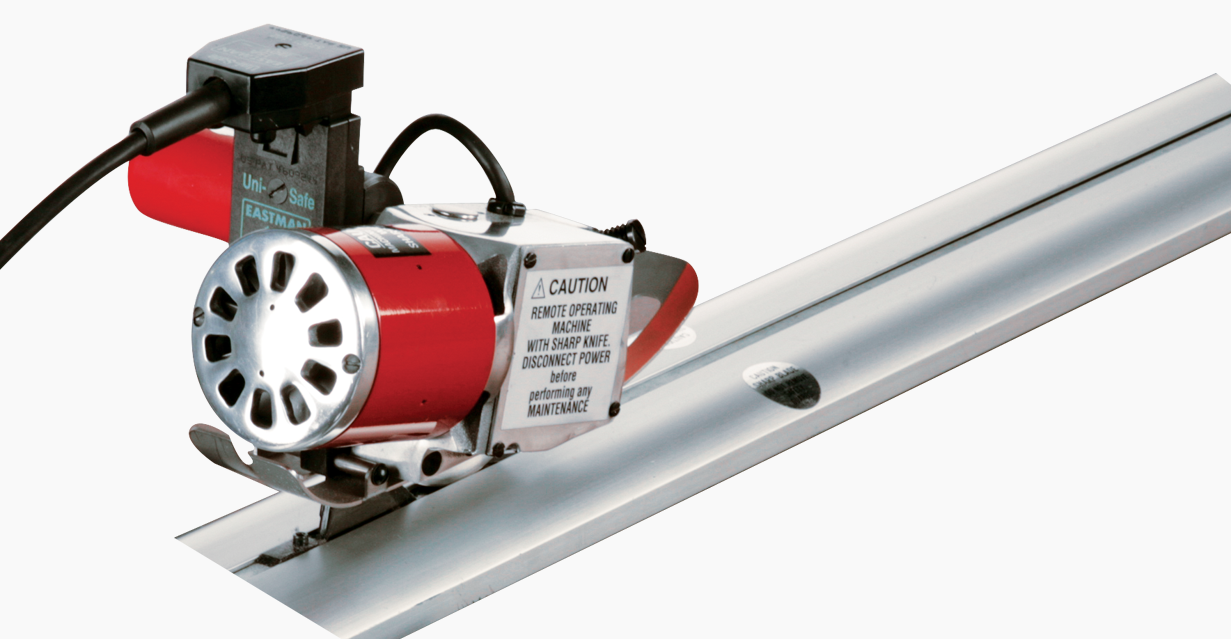

Auto Track Falcon® II

MODEL ATF-II – Eastman’s Auto Track Falcon II offers automatic traversing of the cutting head and an automatic lift feature. Both features enhance cycle time and throughput in comparison to manually-operated models.

Product Summary

End Cutters

Eastman’s Auto Track Falcon II offers automatic traversing of the cutting head and an automatic lift feature.

Both features enhance cycle time and throughput in comparison to manually-operated models.

The remote control enables the operator to activate the Auto Track Falcon’s cutting cycle as soon as the operator is finished pulling the ply down the table.

Manual Cutting > End Cutters

Features

  • Automatic traversing of the cutting head with an automatic lift feature to enhance cycle time and throughput compared to manual models
  • Compression pressure bar ensures a clean cut for both heavy and soft materials
  • Remote control enables the operator to activate the cutting cycle as soon as the operator is finished pulling the ply down the table
  • Alternative pneumatic head available for heavy-duty cycle environments where frequent starting / stopping is required

“We at Harper Engineering are very pleased with our recent purchase of the Auto Track Falcon II. It’s speed of cutting and ease of operation has increased production of all 5 materials that we cut at Harper Engineering Co.

Tim Sedlacek MFG Assembly Supervisor Harper Engineering Co.

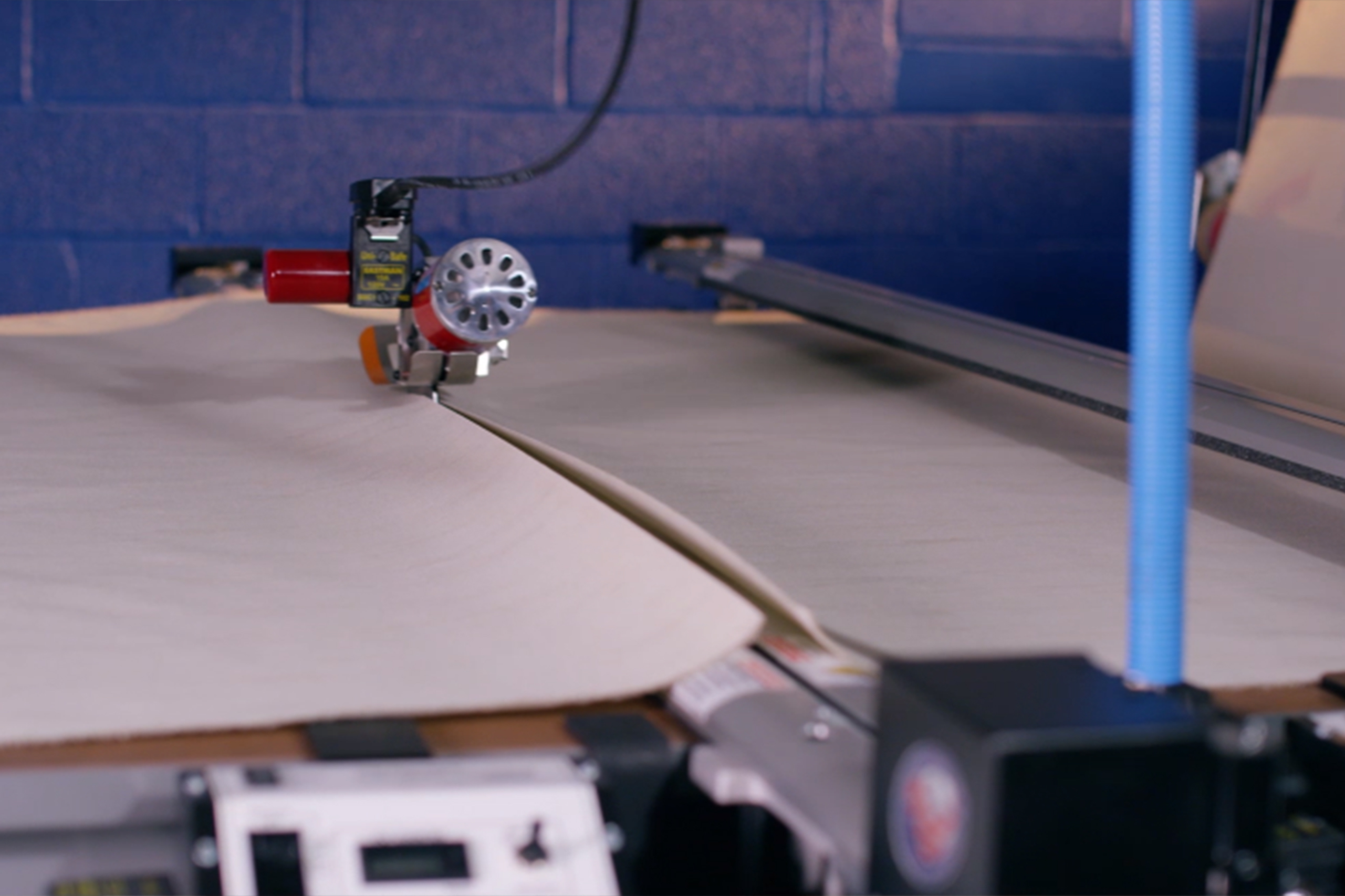

Auto Track Falcon II makes its way across cutting table

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Table Widths Available

48 – 144 in. (1.22m – 3.66m)

Motors

110v, 1ph, 50/60Hz 220v, 1ph, 50/60Hz Pneumatic Head Option: 60-90psi. Control box only: 110V, 1ph, 50/60Hz or 220V, 1ph, 50/60Hz

Horsepower

0.15hp 0.33hp (pneumatic head option)

Weight with Track & Lifters

160 lbs. (72.60kg) 157 lbs. (71.20kg) – pneumatic head option

Standard Features

Auto Start/Stop, Ply Counter, Speed Setting, Compression Foot, Remote Control

Options

Auto Lifter, Foot Pedal, Material Alignment

Blade Size

4 in. (10.2cm)

Cutting Capacity

1.25 in. (3.20cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
