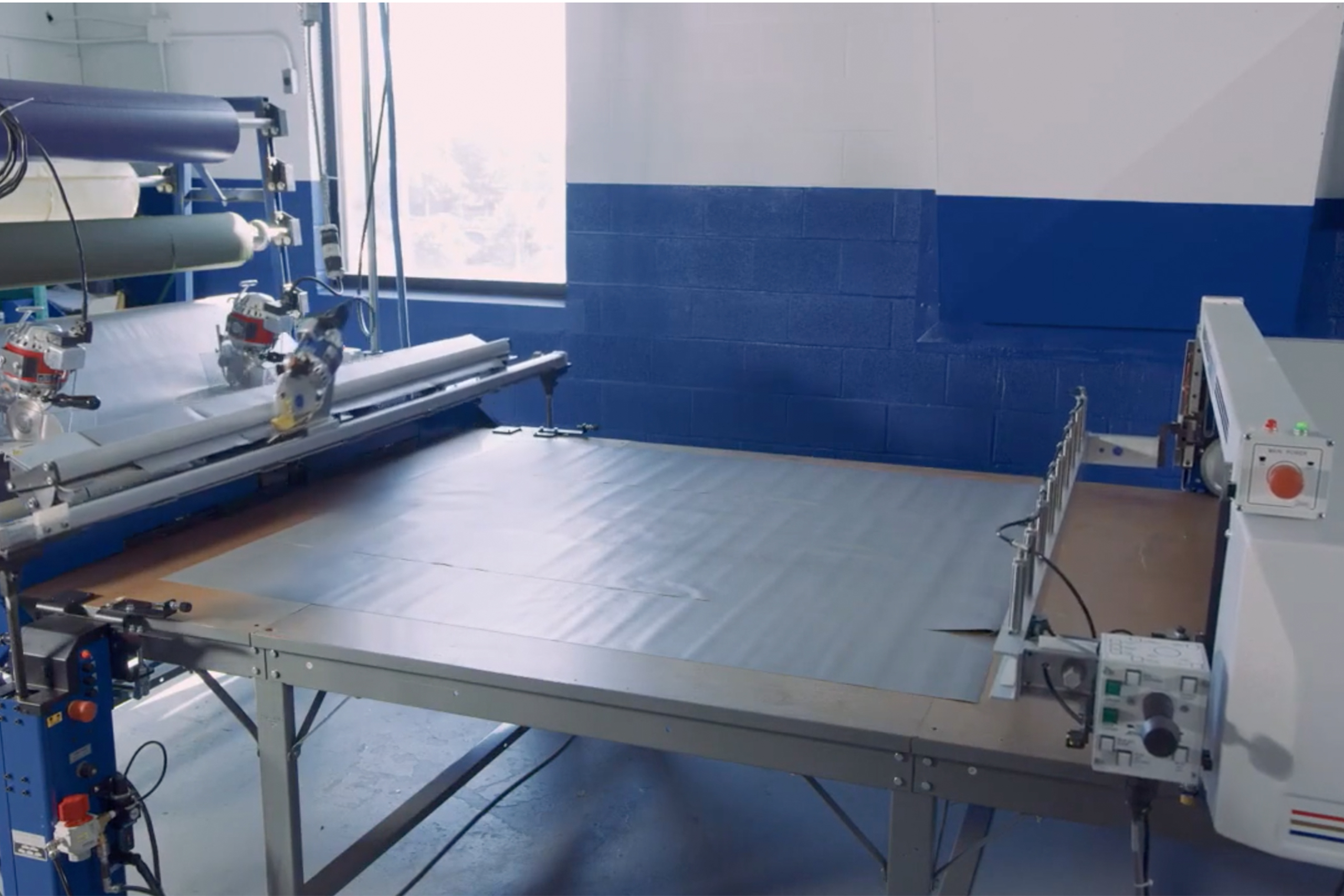

The Blue Jay system requires only one operator to spread and cut full rolls of material with the simple press of a button. It is available as a stand-alone end cutting unit or with an optional Pull-Off for even faster cutting production and improved accuracy.

Product Summary

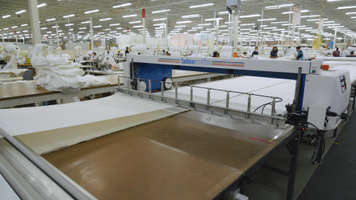

Blue Jay Spread and End Cutter

The Blue Jay is available as a stand-alone end cutting unit or with an optional Pull-Off for even faster cutting production and improved accuracy. The system requires only one operator to spread and cut material with the simple press of a button.

The Pull-Off, a moveable pneumatic clamp, grabs the ply to be spread and pulls it down the table to the desired length.

The cutting attachment, a powerful 5 inch (12.7cm) round knife, automatically drives across the width of the fabric in a guided track for repeated, perfectly straight-line cutting.

For added panel cutting features, Eastman’s 548BK round knife slitters, can be added to the Blue Jay End Cutting System for cutting in both horizontal and vertical directions.

A more robust Heavy-Duty Blue Jay is available for tougher materials, such as fiberglass.

Material Handling > Spreading Systems

Features

Standard Features

  • Various system footprints for savings in floor space
  • Adjustable grip pressure
  • One-touch joystick control
  • LCD display with keypad for simple operation & system status messaging
  • Programmable lift time
  • Sharpener preset
  • Adjustable ply counter
  • Flaw cut key
  • Watchdog time forces control box to reset in the event of software failure
  • Heavy-Duty Blue Jay with more robust design and heavy-duty base to support cutting tougher materials, such as fiberglass

End Cutter (CRA-395)

  • Digital controls include ply counter, return carriage, auto and manual lift, sharpener mode
  • Clamp pressure setting
  • Clamping bar
  • Remote control option

Pull Off (CRA-375)

  • Machine can reach a maximum speed of up to 100 yards/minute (91m/minute)
  • Accuracy of +/- .25 in. (6mm)
  • Mirror image configuration
  • Custom spread programs
  • 12.5 in. (31.75cm) spread height
  • Air Jet for laminates
  • Custom spread lengths up to 999 inches (25m)
spreader

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Width

60 – 156 in. / 1.5 – 4.0m Available in 6 in. (15.2cm) increments

Horsepower

.20 HP

Maximum Spread Height

9 in. (22.9cm) 14 in. (35cm)

Maximum Cutting Capacity

3/4 in. material thickness (1.9cm)

End Cutter Machine Weight

Approx. 125 lbs. (56.7 kg)

Traverse Cutting Speed

Variable

Blade Speed

1800 RPM

End Cutter Operating Voltage

220V, 5amps, 3ph

Pull-Off Max. Machine Speed

100 yards/minute (91m/min)

End Cutting Accuracy

+/- .25 in. (+/-6mm)

Pull Off Machine Weight

325 lbs. (147 kg)

Length of Pull

32 ft. (9.8m) Optional: 50 ft., 83 ft. (15.2m, 25.3m)

Pull Off Compressed Air

50 psi at 15 SCFM (3.4 bars at 0.42cmm)

Pull Off Electric Requirements

110V, 15 amps, 1ph 220V, 8 amps, 1ph

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
