Buzzaird® Pneumatic Shear

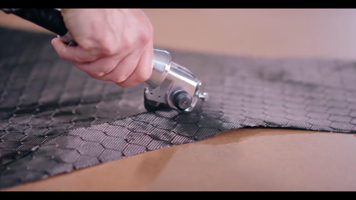

MODEL BZ – The Buzzaird is designed with a 20,000 RPM pneumatic motor suitable for wet environments. It is an extremely powerful rotary shear suitable for cutting single-ply leather, rubber, plastics, woven glass, coated materials, and much more.

Product Summary

Buzzaird Pneumatic Shear

The Buzzaird® rotary shear is available with different shaped blades to maximize shearing, chopping or slicing of technical fabrics. The air powered motor provides an alternative solution to facilities where electric power is not sustainable.

Manual Cutting > Rotary Shears

Features

  • Engineered with a 20,000 RPM pneumatic motor
  • Eastman’s most powerful rotary shear with the highest torque and greatest RPM
  • Optional Pelican head designed for cutting lofted material
  • Optional swivel sharpener is equipped with a 30 degree ball tip shear plate for close edge trimming.



Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Motors

60-90psi

Horsepower

.33hp

Weight

3 lbs. (1.36 kg)

Blades

Standard: Semi-Square Optional: Circular, Octagon

Options

Pressure Foot, Ball Tip, Pelican, 30 Degree Point, Swivel Sharpener, Shear Foot

Blade Size

2.03 in. (5.16cm)

Cutting Capacity

0.38 in. (0.96cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice
