C125 Conveyor System

The robust C125 conveyor allows the user to continuously cut and convey single- to low-ply rolled material goods with consistent accuracy, speed, and control.

Product Summary

C125 – Conveyor System

The Eastman Eagle C125 conveyor system boasts supreme capabilities for single- to low-ply cutting requirements. It has the ability to continuously convey rolled material goods with consistent speed and control. Eastman’s gantry and tool head design are engineered to cut the most diverse technical and industrial fabrics available, while exceeding industry standards for accuracy.

The robust conveyor design delivers unrivaled levels of material utilization and is often capable of cutting multiple layers without plastic overlay. This computer-controlled cutting system requires minimal operator guidance to automatically feed and spread material to the identified start position. The C125 offers tremendous efficiency when cutting pattern pieces that exceed the table length. The exclusive InMotion™ software enables the machine to continuously cut while conveying.

Available in a range of widths, lengths and various tool head accessory options, the C125 will be built to match your application needs, allowing you to customize the tools and capabilities to maximize productivity.

Automated > Automated Cutting

Features

Standard Features

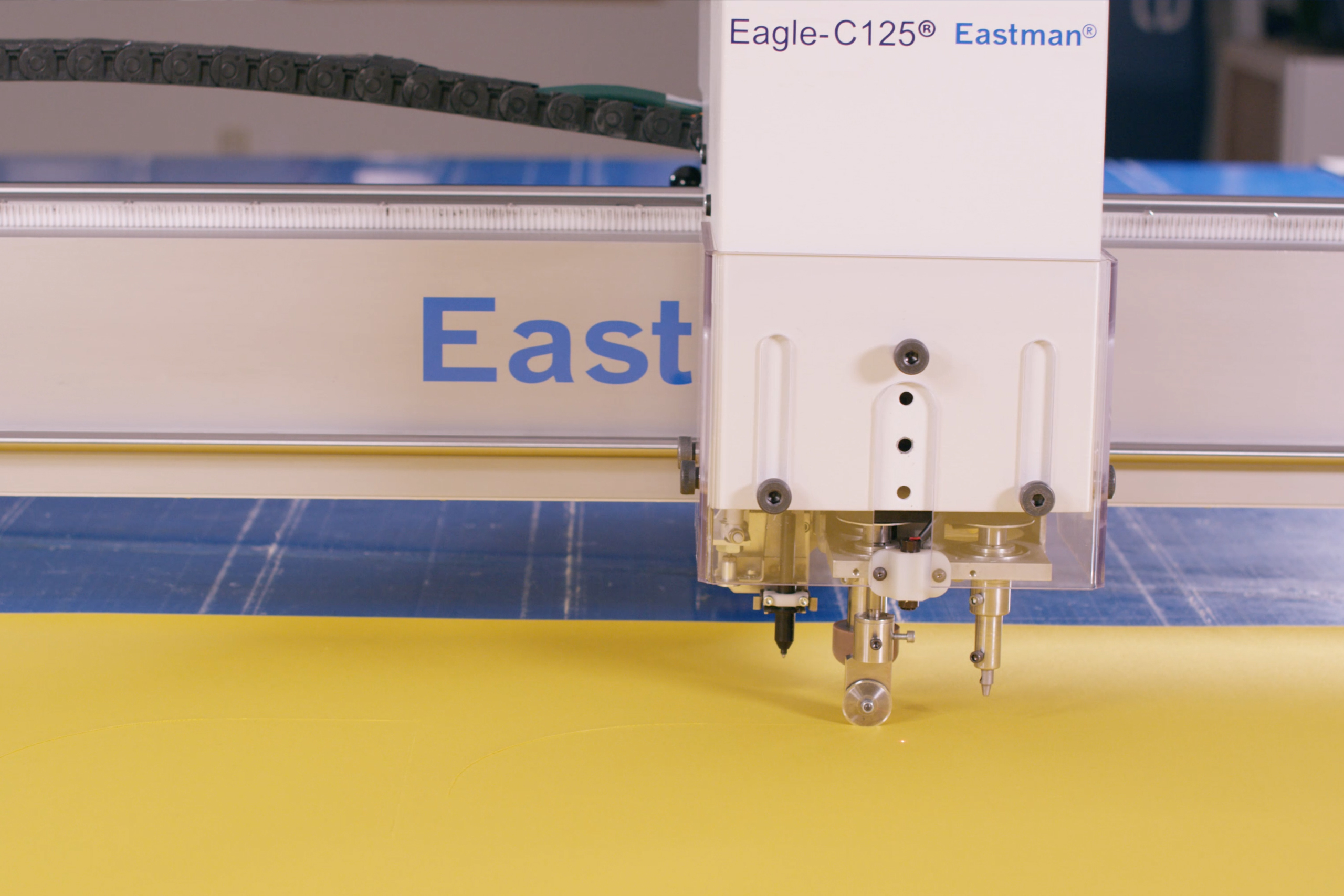

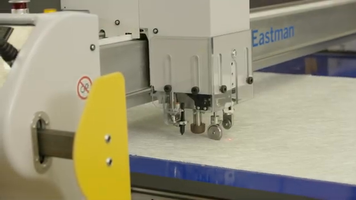

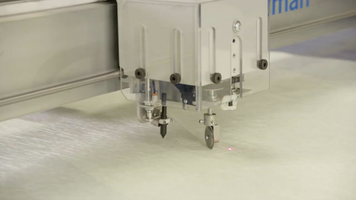

  • Choice of standard, heavy-duty or fiber tool head, featuring individually aligned and calibrated tool spindles with your choice of over 60 blades, punches and notches.

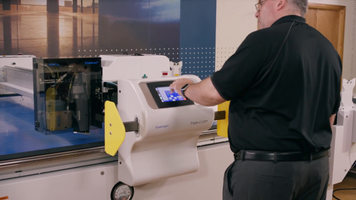

  • A library feature within the operating control software allows the operator to save commonly used tool pressures and blade assignments based on job and material files.
  • Prevent unauthorized changes to the system and software with restricted login access.

Cutting Surface

The cutting surface is a smooth and durable, high-durometer cast urethane conveyor belt suitable for even sticky or downy materials. It has proven reliable for 2,000+ hours of normal operation, with some customers testifying to more than four years of continuous use.

Material Hold-Down

The C125 is equipped with a self-contained, high-flow vacuum system to ensure optimum material hold-down for cutting. Millions of holes are perforated in a random pattern that provides evenly dispersed vacuum flow, no matter where you are cutting. The piece removal zone is integrated into the design, eliminating the need for extension tabling.

International Compliance Ratings

The operating computer, and control cabinet are housed in independent enclosures that are sealed to offer dust and water resistant protection in harsh or high particulate environments. Additionally, cabling connectors, servo motors and display components meet recognized international protection ratings requirements.

Industrial Design

  • Advanced electro-pneumatic regulator for precise tool pressure control
  • Heavy-duty cable connectors
  • Hi/Low voltage systematic panel layout for easy troubleshooting
  • Easy access, sealed doors for inspection and maintenance
  • Heavy-gauge steel construction with scratch-resistant powder coated finish

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Width

78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m) 156 in. (3.96 m) Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information.

Length

16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m) Please contact the factory for active cutting zone dimensions. Custom lengths available, please contact the factory for more information.

Drive System

Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors

Electric - Control Power/PC

230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down transformer required for other voltages.

Electric - Vacuum Blower

208/230/380/460V, 3 ph, 50/60 Hz, 10 HP, VFD control

Power: Pneumatic

75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42 cmm)

Maximum Cutting Speed

60 inches/second (152.4cm/second)

Maximum Conveyor Speed

11 inches/second (28cm/second) System size dependent.

Maximum Acceleration

1.3g

Maximum X/Y Speed

60 inches/second

Compressed Air Consumption

15 cfm

Sound Level

<76 db(A)

Operating Temperature

55 – 100°F (12 – 37°C)

Humidity

20 – 80% (non-condensing)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
