Digitizing Tablet

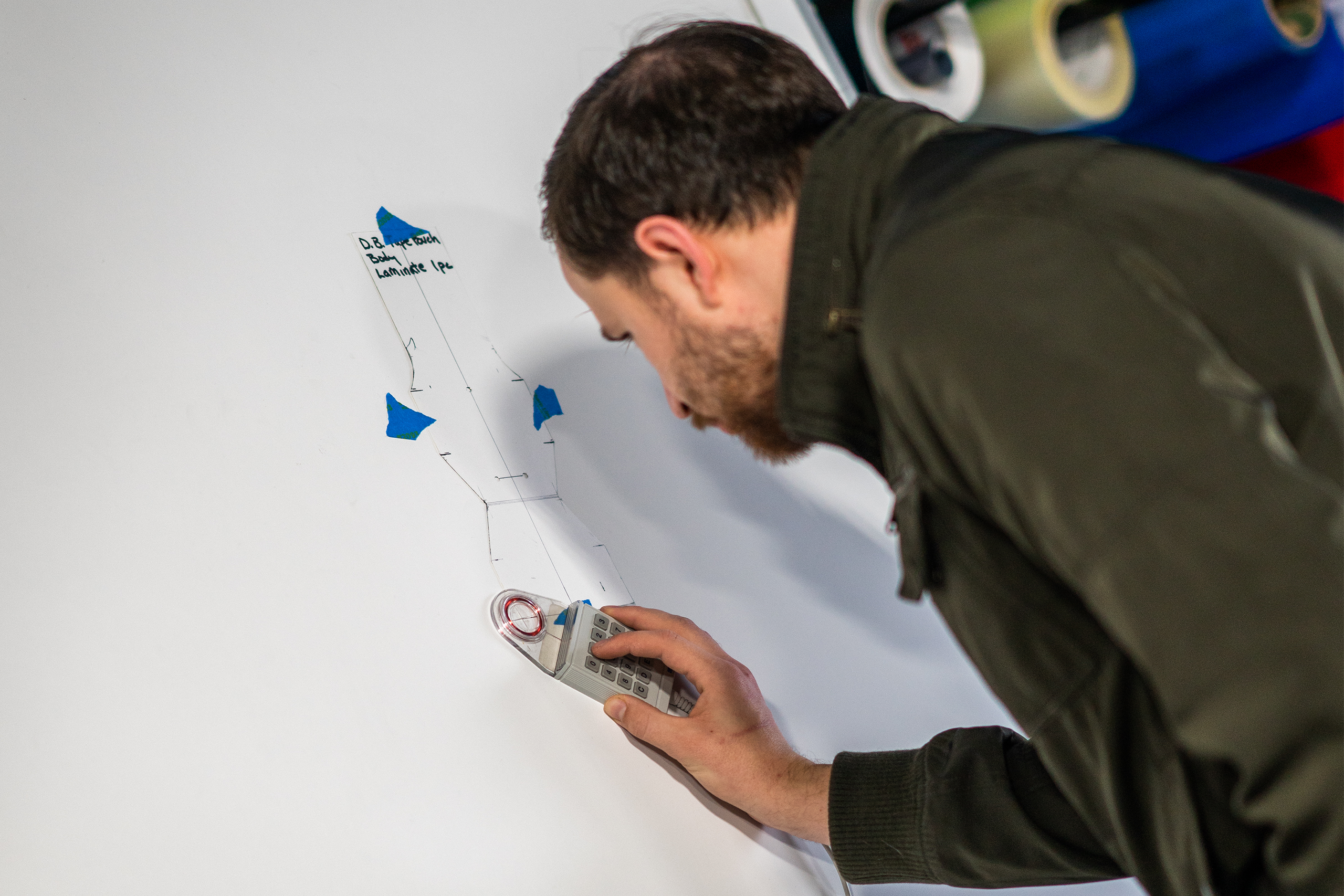

Easily turn hard copy patterns into a digital file with a digitizing system. The large-format digitizing tablet offers greater flexibility and patented sensing technology for enhanced performance.

Product Summary

Digitizing Tablet

A large format digitizing tablet offers greater flexibility and patented sensing technology for enhanced performance. An integrated USB connection allows the digitizer to be powered through any PC, providing access to software programs.

Software > Pattern Digitalizing

Features

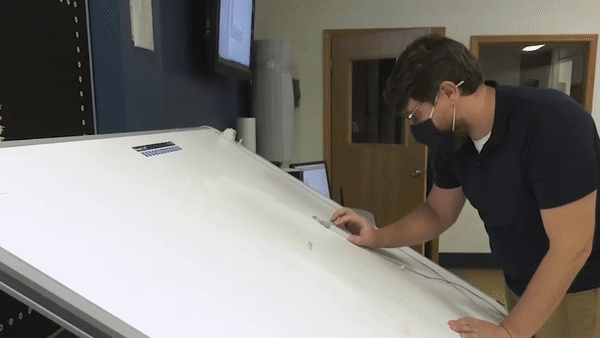

  • Classic digitizing tablet with stand

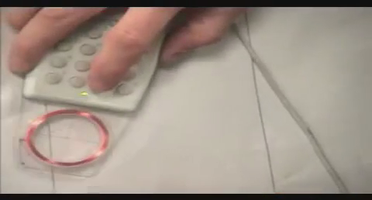

  • 16 button cordless cursor
  • USB interface cable
  • Stand tilts 0-45 degrees, vertical travel 24° – 36° in 1 inch increments
  • Other tablet dimensions optionally available



Digitizing

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Baud Rates

Up to 38,400

Operating Modes

Line, continuous, line increment and continuous increment

Accuracy

+/-0.010 inch / 0.25mm

Resolution

Up to 2,540 lines per inch / 100 lines per mm

Power Supply

120V / 60Hz, 220V / 50Hz
No supply required for USB connection

Tablet Dimensions

44 x 60 inches (1118mm x 1524mm)

Request a Quote

Get an individualized product quote from one of our application specialists. We’re here to help you configure a personalized cutting solution for your business.
