EFL-200 Fabric Loading Machine

The Eastman EFL-200 is an easy way to load fabric rolls to spreading machines with ease and speed. It is capable of managing rolls up to 200kg (440lbs) at several different widths.

Product Summary

EFL-200 Fabric Loader

The Eastman EFL-200 is an easy way to load fabric rolls to spreading machines with ease and speed. It is capable of managing rolls up to 200kg (440lbs) at several different widths.
Material Handling > Spreading Systems

Features

  • Motor driving load single fabric roll to spreader
  • V-shape loading plate turns automatically when it reaches to up position; fabric roll drops into spreader’s cradle easily
  • Maximum load capacity up to 200kg (440lbs)
  • Floor level v-shape plate enables placing roll to plate easily

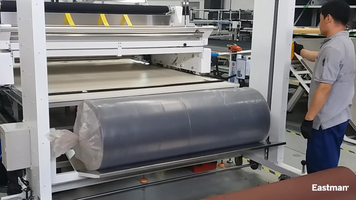

person loads fabric roll onto cutter with EFL 200

Download Product PDF

  • Hidden
  • Hidden
  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Weight Capacity

200kg (440lbs)

Power Requirement

220 or 380V / 3ph / 1.5kW

Max. width of fabric

EFL-200 6' – 63 in. / 1600mm
EFL-200 7' – 75 in. / 1900mm
EFL-200 8' – 87 in. / 2200mm

Loading Height

55.11 in. / 1400mm
57.90 in. / 1470mm option

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
