Heavy Duty Falcon® 548

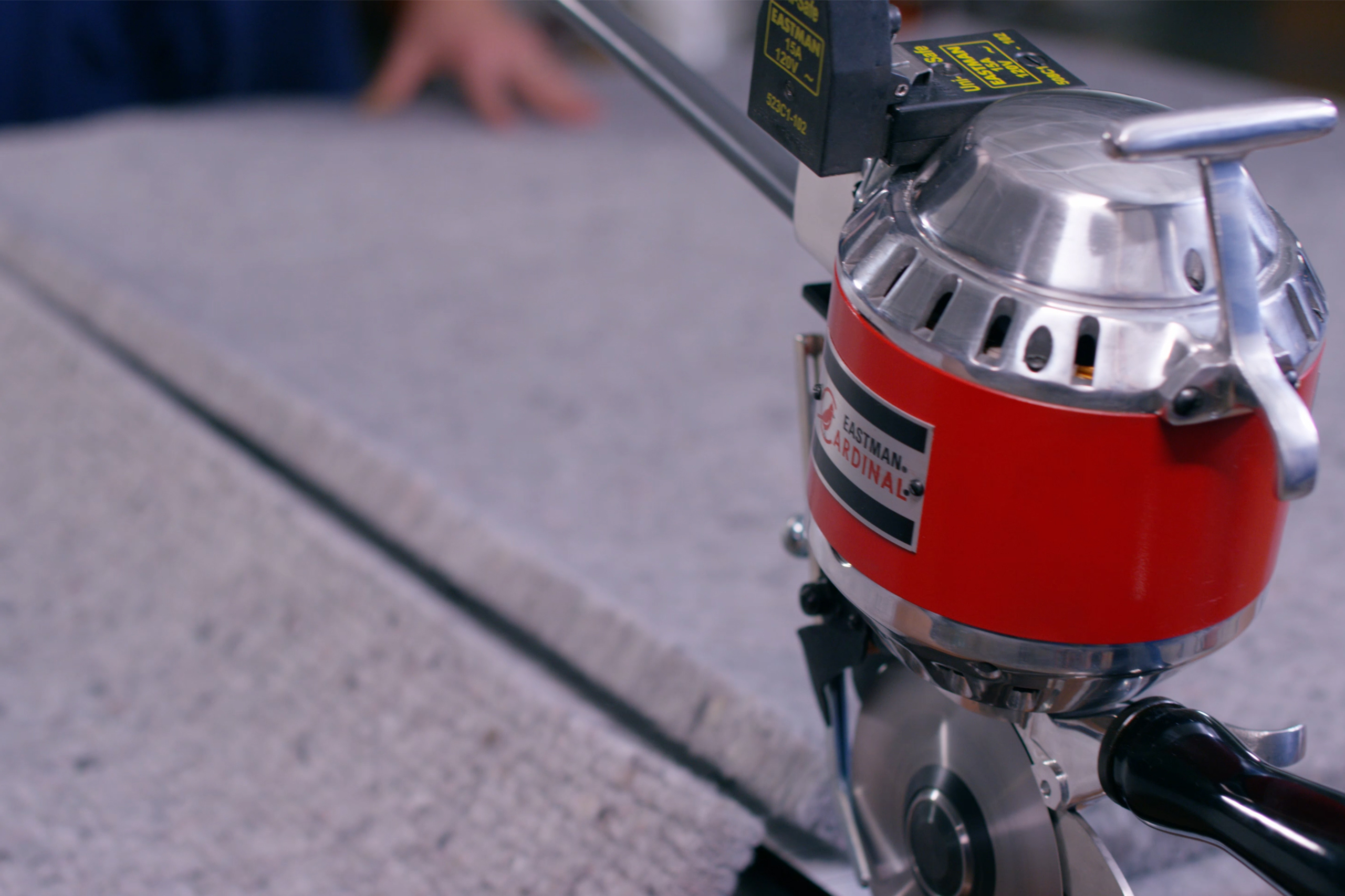

MODEL 548FALHD5H – Featuring Eastman’s Heavy-Duty 548 Cardinal® Round Knife, mounted on a skate and bearing system and inside a track, it is the ideal solution for difficult-to-cut materials or materials that generate debris when being processed.

Product Summary

End Cutters

Featuring Eastman’s Heavy-Duty 548 Cardinal Round Knife, mounted on a skate and bearing system and inside a track, it is the ideal solution for difficult to cut materials, or materials that generate debris when being processed. A fantastic solution for straight cuts of insulation!

It can be attached to any type of cutting table with an easy-to-use clamping bracket.

The Heavy Duty Falcon has a “Quick-lift” lifting device allowing for manual spreading and cutting of goods such as heavy woolens, canvas and most industrial fabrics.

Manual Cutting > End Cutters

Features

The 548 Falcon has a cutting capacity of 1 inches (2.54cm).

Cutting of wide material with wide table options (up to 144in. wide / 3.66m wide), with a long handle option or a push/pull handle option for extremely wide cuts needing more than one operator

  • Combination of the Cardinal 548 round knife with a heavy duty ball bearing skate and rigid track system, excellent for applications where debris is generated
  • Features a “Quick-Lift” device for allowing manual spreading and cutting of goods like heavy woolens, canvas and most industrial fabrics, including composite materials
Heavy Duty Falcon 548 across table from operator

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Table Widths Available

48 – 144 in. (1.22m – 3.66m)

Motors

110v, 1ph, 50/60Hz 220v, 1ph or 3ph, 50/60Hz

Horsepower

0.20hp, 1ph 0.48hp, 3ph

Weight with Track & Lifters

75 lbs. (34.02kg)

Standard Features

Heavy-duty steel track and skate system

Options

Manual lifter, Bias Lifter, Air Lifters, Material Alignment, Push Handle, Swivel Handle

Blade Size

5 in. (12.7cm)

Cutting Capacity

1 in. (2.54 cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
