Little Giant

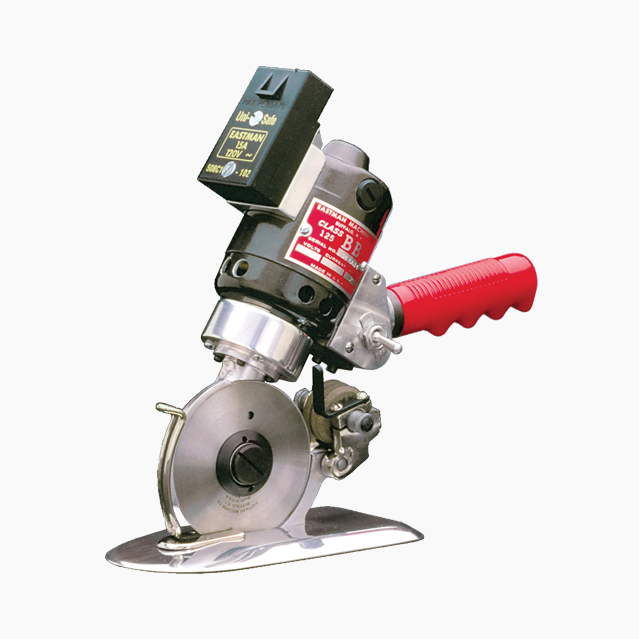

MODEL BBB32 – The Little Giant offers consistent power and control when cutting fine fabrics and heavier weight materials such as upholstery and industrial fabrics.

Product Summary

Cardinal Round Knives

The BBB32 features a double-bevel blade and a premium quality high-torque universal motor to maintain blade speed under heavy loads.

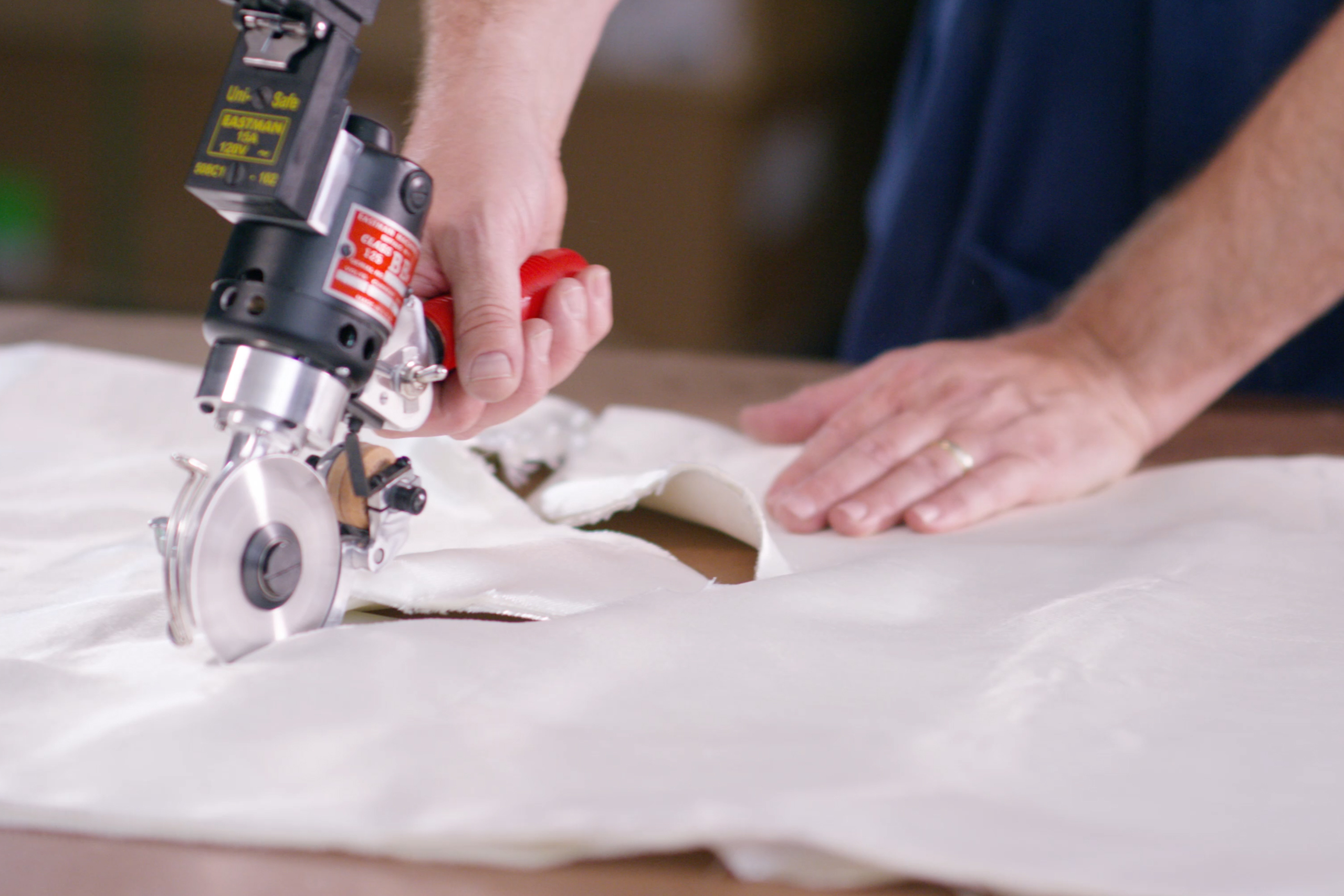

This machine is an economical alternative for cutting through heavier weight materials, such as upholstery and industrial fabrics, and fine fabrics, such as low ply delicate synthetics, without pulls or damage to the material. The double-bevel 3 ¼ inch blade provides a clean cut and eliminates jamming between the blade and plate. The Little Giant, like all Eastman round knives, is perfect for cutting large radius curves and straight lines.

All Eastman machines are built with the highest grade materials available.

Manual Cutting > Round Knives

Features

  • Double-Bevel 3 ¼ in blade
  • High-torque universal motor maintains blade speed under heavy loads
  • Cut through heavier weight materials, such as upholstery and industrial fabrics, and low-ply delicate synthetics without pulls or damage to the material

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Motors

110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz

Horsepower

0.10hp

Weight

4 lbs. 2 oz. (2.27kg)

Blades

Standard: Carbon Round Optional: High Speed Round, Carbon Hexagon

Sharpener Stones

Standard: 120 Heavy Optional: 150 Medium, 220 Fine Dual Wheel Sharpener is standard

Blade Size

3.25 in. (8.26cm)

Cutting Capacity

0.625 in. (1.59cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.

Request a Quote

Get an individualized product quote from one of our application specialists. We’re here to help you configure a personalized cutting solution for your business.
