Photo Digitizer

Pattern digitizing with the Photo Digitizer allows the user to quickly capture and scan patterns into a CAD/CAM system. The Photo Digitizer is an absolute time and space saver, bringing high speed and accuracy to mass production, with less workspace and training needed. The best part? No complicated calibrations are required.

Product Summary

Photo Digitizer

Pattern digitizing with the Photo Digitizer allows the user to quickly capture and scan patterns into a CAD/CAM system. The software creates a digital photo and transforms the image into a .dxf or .plt file.

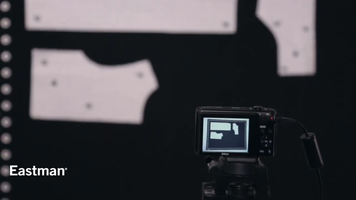

The Photo Digitizer is an absolute time and space saver – bringing high speed and accuracy to mass production, with less work space and training needed. Both sizes of the special magnetic board can be fixed on any wall, claiming no valuable floor space. The camera can either be placed on a tripod or held by hand. The best part? No complicated calibrations
are required.

Software > Pattern Digitalizing

Features

  • Self-calibrating magnetic board allows for affixing/removing patterns
    on the surface using magnets
  • Produces consistent results each time even from
    different angles, eliminating all manual calibration
  • Digitizes all patterns placed on its magnetic board regardless
    of number, color or complexity
  • Control and edit functions
  • Compatible with many CAD systems
  • Includes: canvas, board (black or white), software, dongle, camera
    and tripod
  • Optional: Mobile stand that is specially designed for digitizing patterns
    that are too large or thick to attach by magnets. It has wheels for easy
    movement throughout any working environment. The camera holder
    arm tilts with the board so it captures the right point.

Download Product PDF

"*" indicates required fields

Hidden
Hidden
Hidden

Please complete the below form to download digital assets.

Digital Asset*
Check files to be downloaded:
Enter your email address:
This field is for validation purposes and should be left unchanged.

Additional Information

Standard Tablet Dimensions

5 ft. (150 cm) x 4 ft. (120 cm)

XL Tablet Dimensions

5 ft. (150 cm) x 10 ft. (300 cm)

Request a Quote

Get an individualized product quote from one of our application specialists. We’re here to help you configure a personalized cutting solution for your business.
