Power Feed, Roll Stand Interface

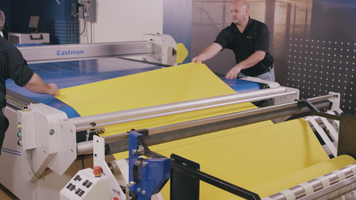

The Power Feed System simplifies material feeding to the cutting system by automatically adjusting and maintaining consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed continuously supplies material for the length of marker or until the roll is consumed.
![](https://www.eastmancuts.com/wp-content/uploads/2019/05/Power-feed-roll-stand-interface.png)
Product Summary
The Power Feed System simplifies material feeding to the cutting system by automatically adjusting and maintaining consistent tension for any material type. An optional photo-electric edge control unit ensures precise alignment of each ply. Available in one-roll, two-roll, three-roll, six-roll with cart, or flat fold configurations, the Power Feed continuously supplies material for the length of marker or until the roll is consumed.
Material Handling > Feeding Systems
Features
- Automatic edge control included
- Available in mirror image or standard configuration
- 6-roll cart
- Includes removable bar supports
![](https://www.eastmancuts.com/wp-content/uploads/2015/02/roll-interface-featured.jpg)
Download Product PDF
Additional Information
Width | 78 in. (2.0 m) 84 in. (2.1 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
---|---|
Standard Weight Capacity | 4,000 lbs. (1814 kg) |
Weight Capacity Per Bar | 750 lbs. (341 kg) |
Maximum Roll Diameter | 15 in. (38 cm) |
Power Requirements | 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph |
