S135 Static Table Cutting System
Single- to low-ply precision cutting, marking, and punching of any flexible material with Eastman’s S135 static table. Multiple cutting surfaces are available to suit various cutting applications.
Product Summary

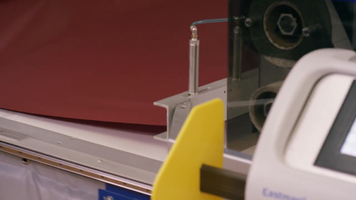

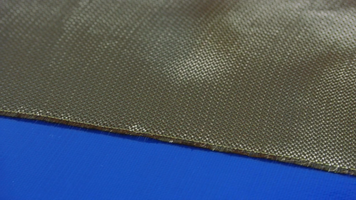

Eastman’s static table system is capable of cutting, marking and punching virtually any flexible material at speeds of up to 60 inches per second (152.4 cm/sec.). The static cutting table has proven itself as the go-to resource for materials like cotton, nylon and vinyl as well as difficult-to-cut materials—such as polystrand, p-tex, and fiberglass-polyester blends.

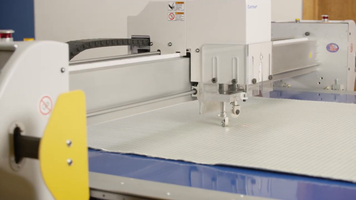

The system’s high-precision configuration features multi-axis motion for more defined and accurate cuts. Material is spread across the static table by an operator or with the use of a pneumatic gripper bar. The open plenum vacuum system design ensures evenly dispersed airflow for optimal material hold-down. This computer-controlled system features zoning capabilities to enable cutting in one area while the operator is simultaneously picking parts in another, maximizing daily production capacity.
The static table system is available in a range of system lengths and widths to meet the demands for prototypes, one-offs and full-production runs.
Automated > Automated Cutting
Features
Standard Features

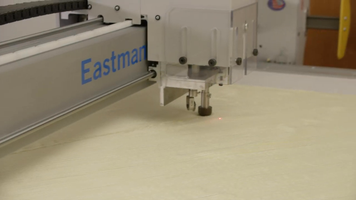

- Choice of standard, heavy-duty or fiber tool head, featuring individually aligned and calibrated tool spindles with your choice of over 60 blades, punches and notches.
- A library feature within the operating control software allows the operator to save commonly used tool pressures and blade assignments based on job and material files.
- Prevent unauthorized changes to the system and software with restricted login access.
Cutting Surface
The standard cutting surface is a porous plastic sheet. Alternative cutting surfaces are available to optimize cutting results for any given material or aid in controlling material contamination concerns. Proven reliable for 2,000+ hours of normal operation use.
Material Hold-Down
The S135 is equipped with a high-flow vacuum system to ensure optimum material hold-down for cutting. The porous surface ensures evenly dispersed vacuum flow, no matter where you are cutting. Cutting zones may be designated so that cutting occurs in one area while piece removal takes place in another.
International Compliance Ratings
The operating computer and control cabinet are housed in an ergonomic enclosure that can be sealed to offer dust and water resistant protection in harsh or high particulate environments. Additionally, cabling connectors, servo motors and display components meet recognized international protection ratings requirements.
Industrial Design
- Advanced electro-pneumatic regulator for precise tool pressure control
- Heavy-duty cable connectors
- Easy access, sealed doors for inspection and maintenance
- Heavy-duty construction with scratch-resistant powder coated finish
- The series of drives is capable of Condition Based Predictive Maintenance. This is the practice of detecting changes in machine vibration and friction of your belt drives, linear guides, and gears so that parts can be replaced accordingly before they fail. This function automatically generates a failure warning limit so machine operators can schedule a service call to prevent machine downtime.
Safety
- Four remote emergency stops: two on cutting gantry, two system-mounted
- Additional gantry-mounted stop disks pause system operation until returned to neutral and reset. Operation can then be resumed from any position
- Tool head is equipped with plexiglass safety window to keep hands free of knife during operation
- Single turn-off point with a universal power system for lockout/tagout safeguards employees from unexpected start-up
Download Product PDF
Additional Information
Width | 54 in. (1.37m) 60 in. (1.54m) 72 in. (1.82m) 78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m) 156 in. (3.96 m)+ Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information. |
---|---|
Length | 8 ft. (2.44m) 12 ft. (3.66m) 16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m)+ Please contact the factory for active cutting zone dimensions. Custom lengths available, please contact the factory for more information. |
Drive System | Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors |
Electric - Control Power/PC | 230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down/up transformer required for other voltages. |
Electric - Vacuum Blower | 208/230/380/460V, 3 ph, 50/60 Hz, 7.5 HP, VFD control optional |
Power: Pneumatic | 75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42cmm) |
Maximum Cutting Speed | 60 inches/second (152.4cm/second) |
Maximum Acceleration | 1.3g |
Maximum X/Y Speed | 60 inches/second |
Compressed Air Consumption | 15 CFM |
Sound Level | <76 db(A) |
Operating Temperature | 55 – 100°F (12 – 37°C) |
Humidity | 20 – 80% (non-condensing) |
Request a Quote
Get an individualized product quote from one of our application specialists. We’re here to help you configure a personalized cutting solution for your business.
