Plastic Master

MODEL 629PM / 627PM – Eastman’s Plastic Master gravity fed, blade lubrication, and cooling system have been designed specifically to eliminate materials from fusing during the cutting of intricate patterns or straight lines. This is a perfect choice for cutting plastic and other fusible materials like cotton backed vinyl, PVC and other reinforced plastics.

Product Summary

Straight Knives – Blue Streak and Brute

Eastman’s Plastic Master™ gravity fed, blade lubrication and cooling system have been designed specifically to eliminate materials from fusing during the cutting of intricate patterns or straight lines. This is a perfect choice for cutting plastic and other fusible materials like cotton backed vinyl, PVC and other reinforced plastics. The Plastic Master™ is available in a standard version, 629XPM, and a heavy-duty version, 627XPM, where a moistening attachment is added.

All Eastman machines are built with the highest grade materials available.

Manual Cutting > Straight Knives

Features

  • Heat reducing features such as a dual speed motor, short stroke and wave blade reduce blade contact by 80%
  • Special gravity feed moistening attachment to eliminate fusing
  • Coolant flow can be adjusted to achieve the desired degree of lubrication and cooling required

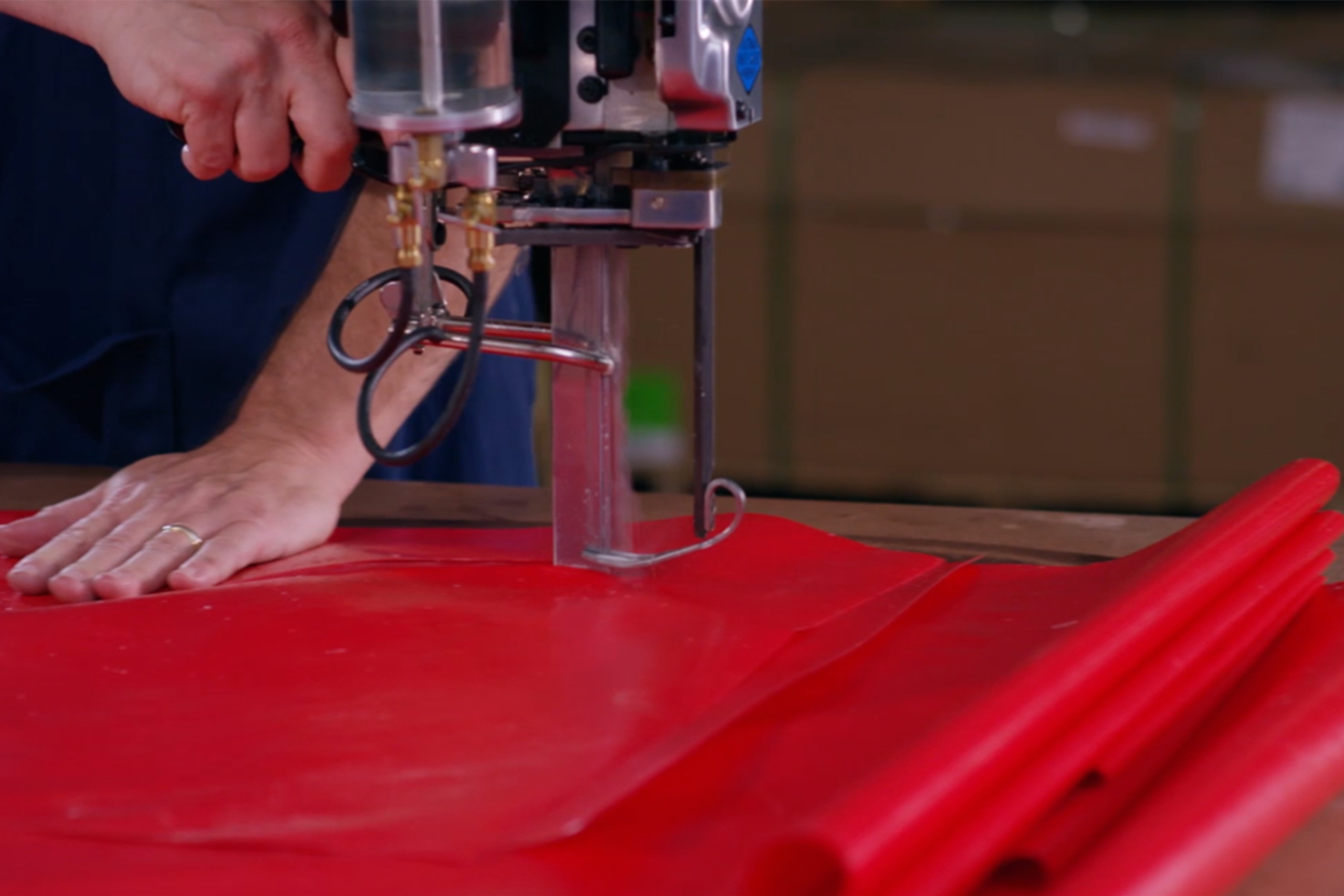

operator using Round Knife Plastic Master

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Motors

110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed

Horsepower

.65hp, 1ph .93hp, 3ph

Weight

34 lbs. (15.4kg)

Blades

Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip

Belts

Standard: Medium Grit Optional: Fine, Coarse, Rough

Options

Micro Fog only available for 6 in. and 8 in.

Stroke Sizes

1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm)

Blade Sizes

6 in (15.2 cm) 8 in. (20.3 cm)

Cutting Capacity

4.5 in. (11.4cm) 6.5 in (16.5cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
