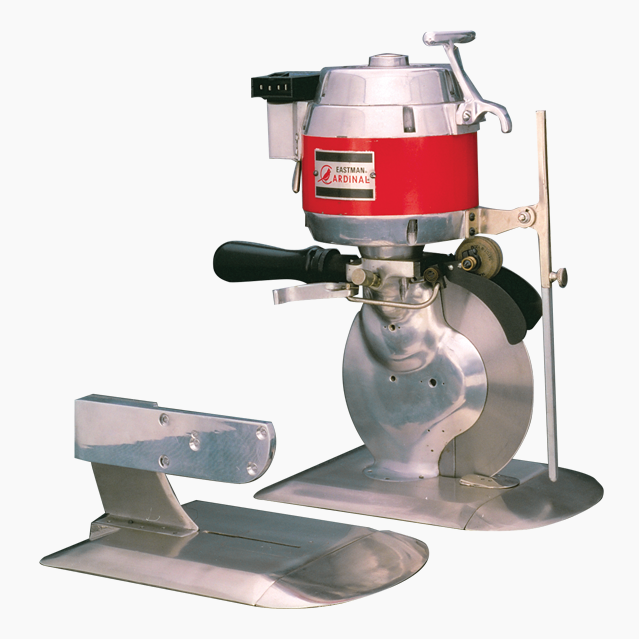

Super Duty Slitting Machine

MODEL / 567BK – Easily cut through high durometer rubber as well as plastic sheeting and dense fabrics that require a more powerful motor and greater height capacity. This machine may be supplied with a high speed, low speed, or dual-speed motor for the broadest range of applications.

Product Summary

Cardinal Round Knives

The Heavy Duty and Super Duty round knife machines can easily cut through up to eighty durometer rubber as well as plastic sheeting and dense fabrics that require a stronger motor and greater height capacity.

Each of these special Cardinal® round knife machines may be supplied with a high speed, low speed, or dual speed motor for the broadest range of applications. Both models may be fitted with an optional Plastic Master lubricator.

All Eastman machines are manufactured with the highest grade materials.

Manual Cutting > Round Knives

Features

  • Designed to easily cut through high durometer rubber, plastic sheeting and dense, flexible materials
  • Has a powerful motor and additional cutting capacity
2 Standard Slitting Machines work in tandem

Download Product PDF

  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Motors

110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380v, 3ph, 50Hz

Horsepower

562: 0.65hp, 1ph, 0.93hp, 3ph 567: 1.25hp, 1ph, 2.2hp, 3ph

Weight

562: 30lbs. (13.6kg) 567: 36lbs. (16.3kg)

Weight with Strip Gauge

562: 40 lbs. (18.24 kg) 567: 46 lbs. (20.98 kg)

Blades

Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated, Slotted

Options

Knife lubricator, strip gauge, long handle, stationary base plate

Blade Size

7.5 in. (19.1 cm)

Cutting Capacity

2 in. (5.08cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
