Turntable

Change the top pitch text: The Turntable is a lightweight, easy-to-use, manual spreader. The maneuverable spreader adjusts for face-up-one way, face-to-face-nap-one-way and face-to-face spreading.

Product Summary

Turntable Manual Spreader

The Turntable is a lightweight easy-to-use spreader. When positioned at the end of a cutting table, the material is manually spread across the table. The maneuverable spreader adjusts for face-up-one way, face-to-face-nap-one-way and face-to-face spreading. To improve efficiency when spreading face-up-one way, a guided Long-Handled Chickadee rotary shear (not attached) can be added to end cut each ply with perfect accuracy.

Material Handling > Spreading Systems

Features

Standard Features

  • Manual edge control
  • 1.25 in. (3.175 cm) Frozen Cloth Bar with Cones
  • Table must be 6 inches (15.2cm) wider than Turntable

Optional Features

  • Long-Handled Chickadee Cut Off (option – not attached)
  • Additional Lifter Arms
  • Double Uprights (includes cloth bar)
  • Cloth Weights

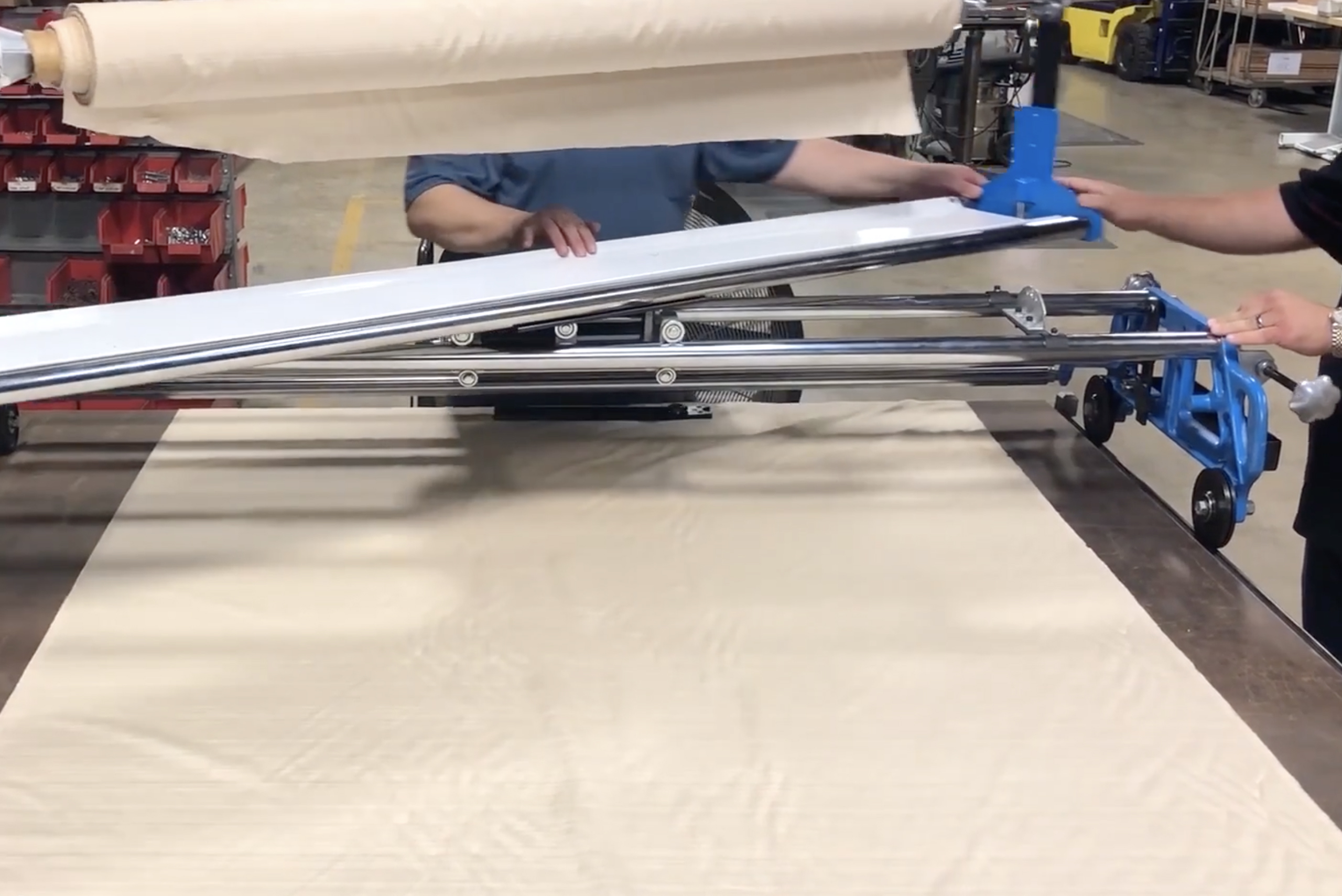

2 people use Turntable manual spreader

Download Product PDF

  • Hidden
  • Hidden
  • Hidden
  • Please complete the below form to download digital assets.

  • Check files to be downloaded:
  • Enter your email address:
  • This field is for validation purposes and should be left unchanged.

Additional Information

Spread Height - Maximum

9 in. (22.9 cm) 15 in. (38.1 cm) – optional

Roll Weight - Maximum

150 lbs. (68kg)

Roll Diameter - Maximum

24 in. (61cm)

Roll Width

48 in. – 72in. standard (122cm – 183cm) Contact the factory for custom sizes in 6 in. (15.2cm) increments.

Machine Weight

75 lbs. (34kg)

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
